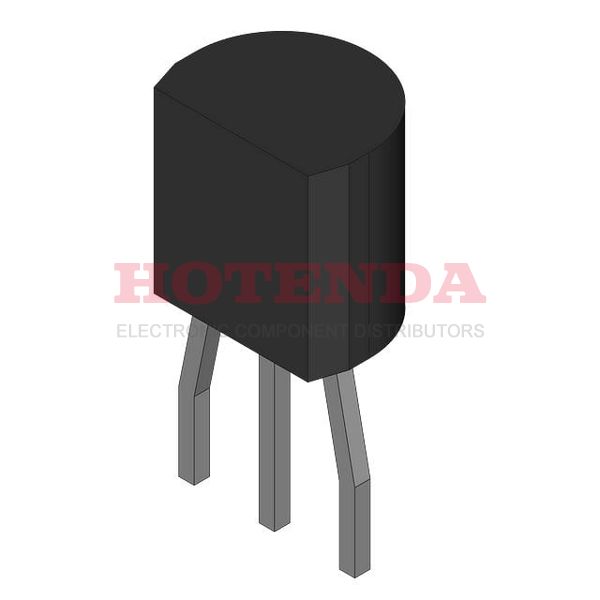

KA75420ZTA Overview
A Tape & Box (TB) package is used to package the power management. For your reference, this PMIC includes a list of TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) functions. Compared to other Simple Reset/Power-On Reset products, this PMIC has a lot of benefits to offer. IC management conducts in a 1-voltage supply. The power management is mounted by Through Hole. Pin count of the power management is 3. I should note that the minimum supply voltage (Vsup) for this IC management should be at least 300mV, which is the minimum supply voltage that should be applied. The maximum supply voltage (Vsup) in this PMIC should not exceed 15V volts. Power management' mounting is recommended to be done with the Through Hole type of mounting. It is recommended that the supervisor be set to this temperature: -25°C~85°C TA. During normal operation, this power managment ic can generate Open Drain or Open Collector of output voltage. There is a 500μA supply current present in the power management. If you want to search for similar IC managements of this manufacturer, you can always refer to KA75420, which is the base power ics number.
KA75420ZTA Features
Simple Reset/Power-On Reset type
Minimum supply voltage of 300mV
500μA operating supply current
KA75420ZTA Applications
There are a lot of ON Semiconductor KA75420ZTA Voltage Supervisors applications.
- Digitally controlled LDO regulators circuit
- Kitchen appliances
- Personal computers
- Electronics installed in the vehicle
- Low voltage/high power - AI, GPU
- DVR
- FPGA design
- Battery cars
- Embedded computing
- Transformer load monitoring equipment
