KA78R12CTU Overview

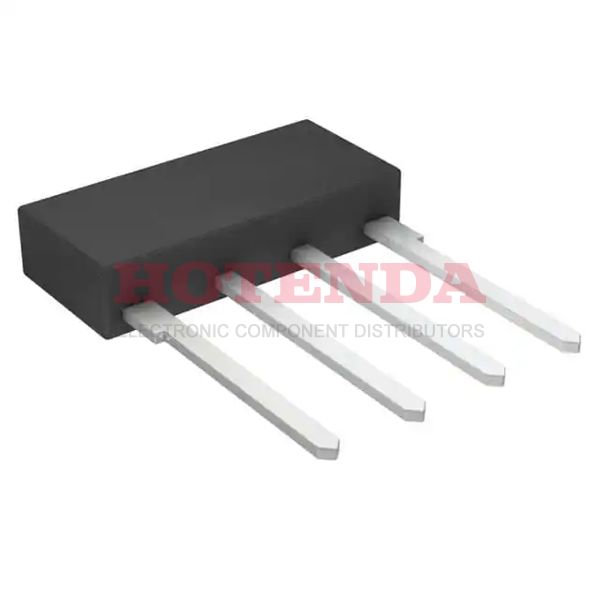

A Tube case is used to deliver the Voltage Regulated IC. A TO-220-4 Full Pack case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -20°C~80°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 4 pins are on the chip. For your information, this regulator's basic part number is KA78R12. There is a way of packing the regulator that is called RAIL. To meet operation requirements, the voltage regulator IC has a maximum output current of 1A. It operates in the 10mA Quiescent Current state.
KA78R12CTU Features
500mV dropout voltage
RAIL method of packing
KA78R12CTU Applications
There are a lot of ON Semiconductor
KA78R12CTU Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
