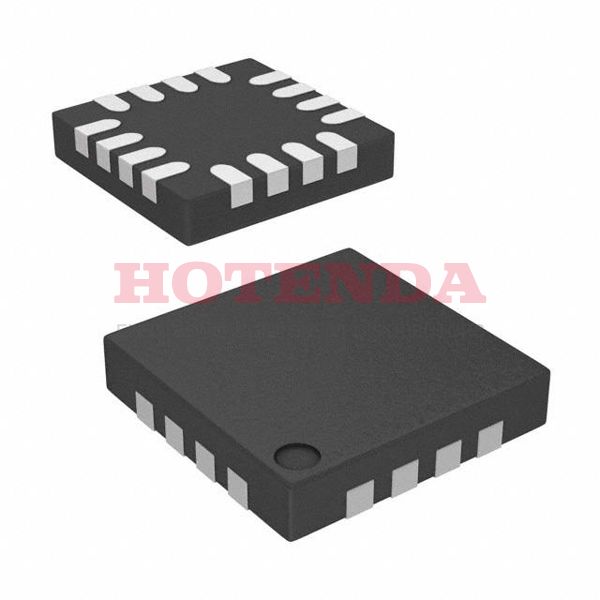

LC709201F01RD-TE-L-H Overview
The 16-WFQFN package is suitable for battery instrument. A system battery like this uses an analog IC named POWER SUPPLY SUPPORT CIRCUIT. 16 pins are attached to it. Tape & Reel (TR) is the case number of the package. It is recommended that you mount this electrical component using Surface Mount. In this case, this electrical part is mounted in the way of Surface Mount. As far as the Battery Monitor functions are concerned, it can be delivered. Temperatures in the -40°C~85°C TA range are ideal for this electronic part. Chemistries for this electrical part are Lithium-Ion. The battery protector ic is powered by a volt of 2.5/5V. This system battery's operating supply voltage falls within the range of 5.5V. This power management IC can supply a maximum current of 3mA.
LC709201F01RD-TE-L-H Features
Available in 16-WFQFN Package
with 16 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
Output Voltage at the range of 400mV
LC709201F01RD-TE-L-H Applications
There are a lot of ON Semiconductor
LC709201F01RD-TE-L-H Battery Management ICs applications.
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
- Electric street sweepers
- Shuttle robots
- Robots
