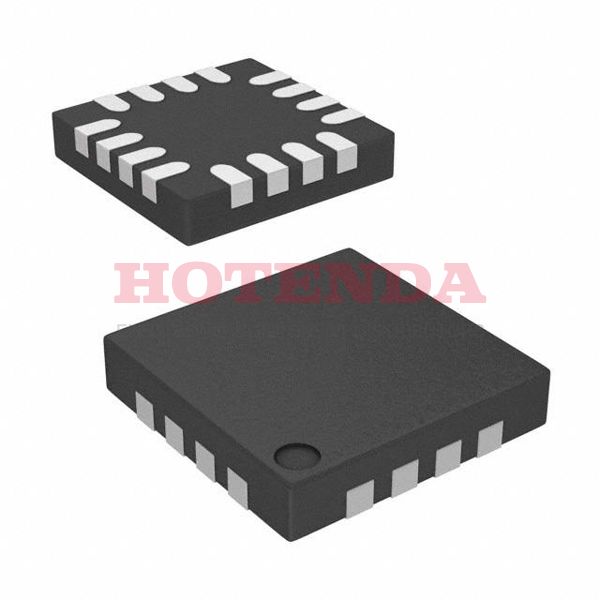

LC709201F02RD-TE-L-H Overview
This package corresponds to 16-WFQFN. POWER SUPPLY SUPPORT CIRCUIT is the analog IC used by this power management IC. The smart tools battery has 16 pins in total. A Tape & Reel (TR) case holds it. There is a electronic part mounted in the way of Surface Mount. In addition to Battery Monitor functions, it can deliver other functions as well. When a electronic part is operated at -40°C~85°C TA, its performance will be optimal. This electronic part includes a Lithium-Ion chemistry battery. The manage ICs is powered by an electric current of 2.5/5V volts.
LC709201F02RD-TE-L-H Features
Available in 16-WFQFN Package
with 16 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
LC709201F02RD-TE-L-H Applications
There are a lot of ON Semiconductor
LC709201F02RD-TE-L-H Battery Management ICs applications.
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
