LM2902NG Overview

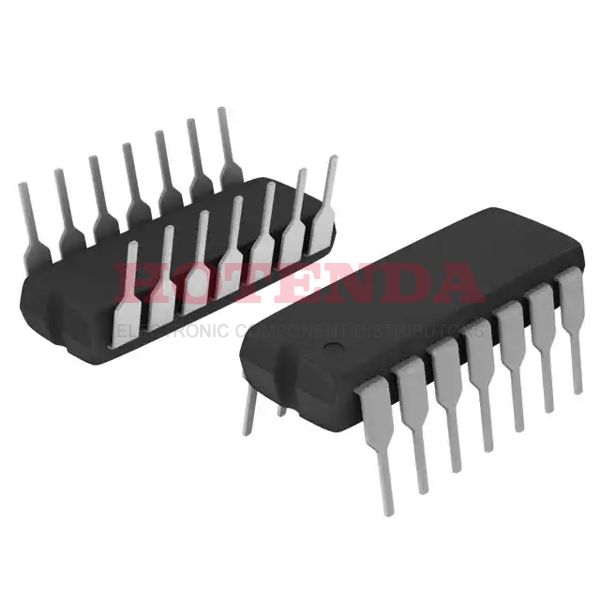

Packaging for the buffer amplifier is in the form of a 14-DIP (0.300, 7.62mm) case. The instrumentation amplifier in this picture is of the General Purpose-type. In the case of Tube cases, linear amplifier will be delivered. There have been a total of 14 terminations over the past year. Buffer amplifier has a total of 14 pins. The linear amplifier should be run at 5V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 14 pins are located on the operational amplifiers. Regarding input offset voltage, buffer amplifier rates 7mV voltage. Through Hole is the recommended mounting type for this linear amplifier. According to the manufacturer, this buffer op amp works well at -40°C~105°C , which is a good operating temperature. It is possible to operate this buffer amplifier from a supply current of 1.4mA . It is recommended to keep the voltage gain at 100dB at all times. The op amp ic has 4 channels on it. The operating supply voltage of the buffer op amp is rated at 16V. For the packing of the instrumentation amplifier, RAIL is adopted.
LM2902NG Features
14 Pins
supply voltage of 5V
100dB voltage gain
LM2902NG Applications
There are a lot of ON Semiconductor LM2902NG Instrumentational OP Amps applications.
- Active probe
- Power control
- Radar
- Subtraction operation circuits
- MP3
- Precision measurement
- Inverse/same-phase proportional circuit
- Displayers for aircraft and air transportation control systems
- Radiation thermometry transducers
- Band-stop filter
