MBRF30H60CTH

  • MBRF30H60CTH - MBRF30H60CTH datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website
  • MBRF30H60CTH - MBRF30H60CTH datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website

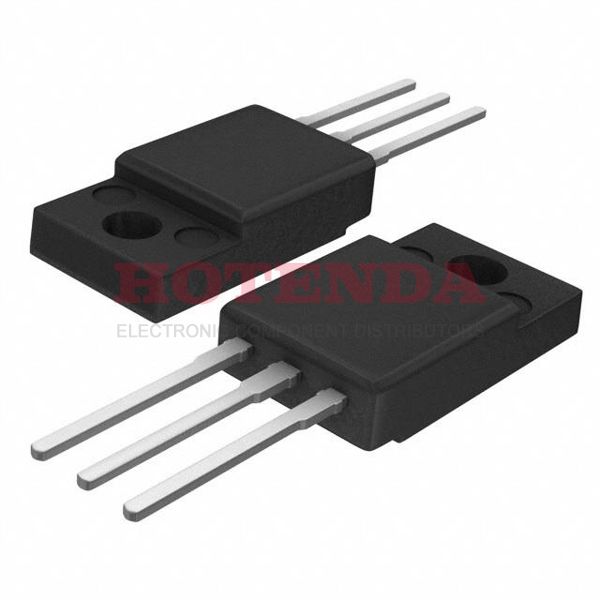

MBRF30H60CTH

MBRF30H60CTH

ON Semiconductor

MBRF30H60CTH datasheet pdf and Diodes - Rectifiers - Arrays product details from ON Semiconductor stock available on our website

SOT-23

MBRF30H60CTH Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220FP
Series SWITCHMODE™
Part StatusObsolete
Moisture Sensitivity Level (MSL) Vendor Undefined
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 300μA @ 60V
Voltage - Forward (Vf) (Max) @ If 620mV @ 15A
Operating Temperature - Junction 175°C Max
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 15A
Diode Configuration 1 Pair Common Cathode
In-Stock:2229 items

MBRF30H60CTH Product Details

MBRF30H60CTH Overview




MBRF30H60CTH Features



MBRF30H60CTH Applications


There are a lot of ON Semiconductor MBRF30H60CTH applications of rectifier diode array.

  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • General Rectification
  • Battery chargers
