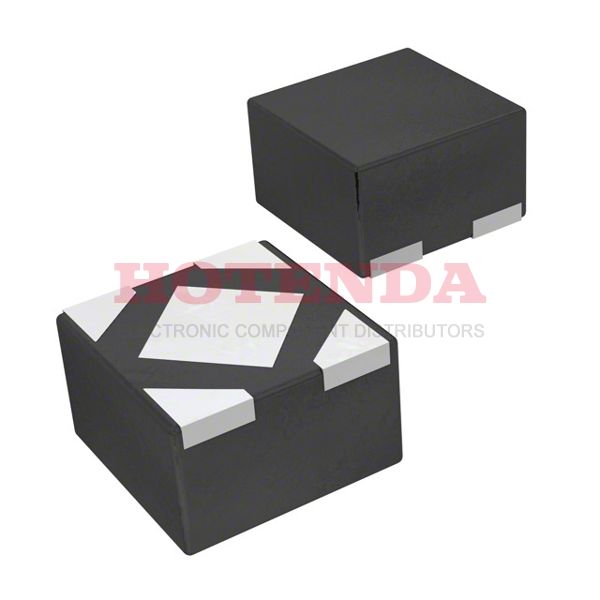

NCP4680DMX23TCG Overview
Deliveries are in Tape & Reel (TR) cases. The package is in a 4-XFDFN Exposed Pad case. Basically, the voltage regulator chip is made up of 4 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~85°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 4. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 4-shaped. As an FYI, this IC voltage regulator has the basic part number NCP4680. The maximal output current reaches 150mA to meet the operating requirements. It operates in the 70μA Quiescent Current state.
NCP4680DMX23TCG Features
280mV dropout voltage
NCP4680DMX23TCG Applications
There are a lot of ON Semiconductor
NCP4680DMX23TCG Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
