NCP4682HMU18TCG Overview

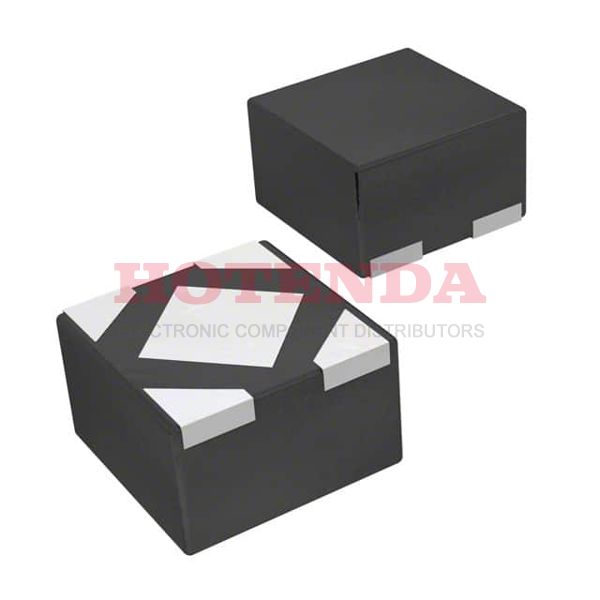

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 4-UDFN Exposed Pad case contains the Liner IC. In total, there are 4 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~85°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 4 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 4-pin is present on the chip. It is NCP4682 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 150mA is required to meet the operation requirements. It operates in the 1.5μA Quiescent Current state.
NCP4682HMU18TCG Features
440mV dropout voltage
TAPE AND REEL method of packing
NCP4682HMU18TCG Applications
There are a lot of ON Semiconductor
NCP4682HMU18TCG Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
