NCV8535MN150R2G Overview

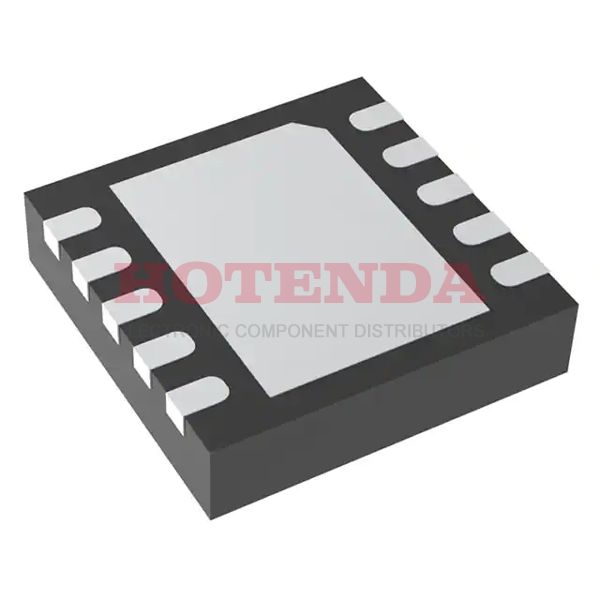

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 10-VFDFN Exposed Pad case is used for packaging. As you can see, the IC chip has 10 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 10 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 10 pins are on the chip. For your information, this regulator's basic part number is NCV8535. There is a way of packing the regulator that is called TAPE AND REEL. To meet operation requirements, the voltage regulator IC has a maximum output current of 500mA. Among the Automotive, AEC-Q100 Series, the IC voltage regulator is one of the most popular models.
NCV8535MN150R2G Features
940mV dropout voltage
TAPE AND REEL method of packing
NCV8535MN150R2G Applications
There are a lot of ON Semiconductor
NCV8535MN150R2G Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
