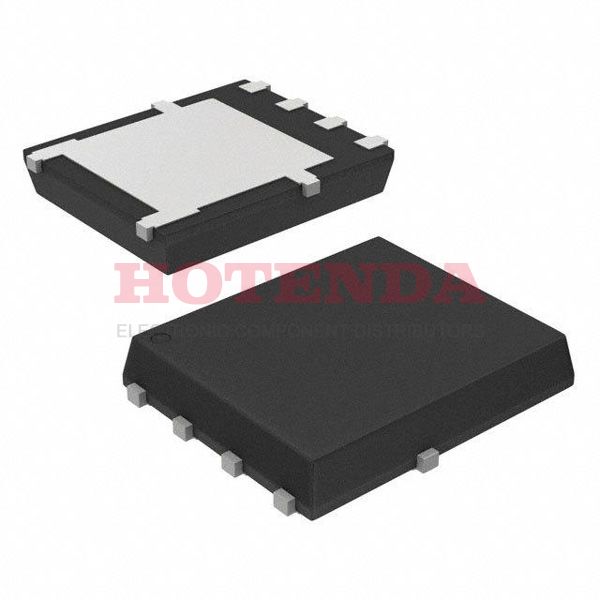

NTS1045EMFST3G

Name: NTS1045EMFST3G
Brand: ON Semiconductor
SKU: NTS1045EMFST3G
Availability: InStock

new-10%

Manufacturer part number:NTS1045EMFST3G

Manufacturer:ON Semiconductor

Description:NTS1045EMFST3G datasheet pdf and Diodes - Rectifiers - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:NTS1045EMFST3G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN, 5 Leads
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Additional Feature	FREE WHEELING DIODE, LOW POWER LOSS
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Reach Compliance Code	not_compliant
JESD-30 Code	R-PDSO-F5
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	50μA @ 45V
Voltage - Forward (Vf) (Max) @ If	600mV @ 10A
Case Connection	CATHODE
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	10A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	10A
Number of Phases	1
Rep Pk Reverse Voltage-Max	45V
Capacitance @ Vr, F	300pF @ 45V 1MHz
Non-rep Pk Forward Current-Max	210A
Reverse Current-Max	50μA
RoHS Status	ROHS3 Compliant
