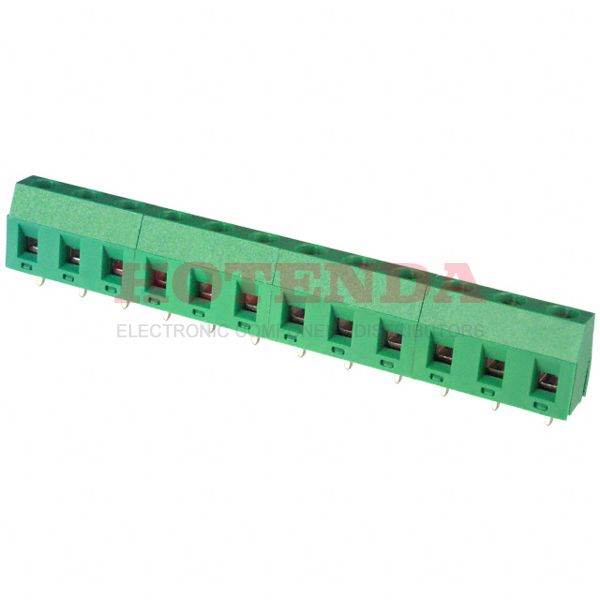

Name: ED365/12
Brand: On Shore Technology Inc.
SKU: ED365/12
Price: 3.93000 USD
Availability: InStock

new-10%

ED365/12

Manufacturer part number:ED365/12

Manufacturer:On Shore Technology Inc.

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-22 AWG ED365

Case Package:SOT-23

Datasheet:ED365/12 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	12
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED365
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	1
Pitch	0.295 7.50mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-22 AWG
Voltage	300V
Plating	Copper
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	12
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	12
Height	13.5mm
Length	90mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED365/12 Product Details

ED365/12 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the ED365 Series of products.The device is equipped with 12 pins.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -30°C.The part is mounted by Through Hole.The device runs in -30°C~105°C Operating Temperature.
