Name: ED365/9
Brand: On Shore Technology Inc.
SKU: ED365/9
Price: 2.95000 USD
Availability: InStock

new-10%

ED365/9

Manufacturer part number:ED365/9

Manufacturer:On Shore Technology Inc.

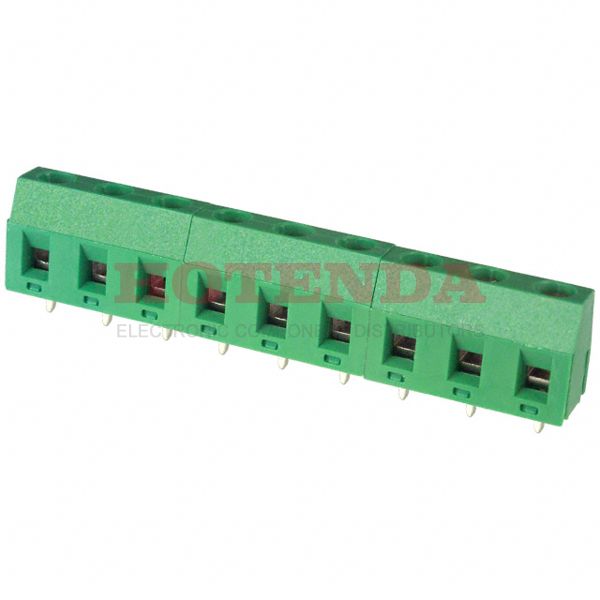

Description:0.295 7.50mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-22 AWG ED365

Case Package:SOT-23

Datasheet:ED365/9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	9
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED365
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	9
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	1
Pitch	0.295 7.50mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-22 AWG
Voltage	300V
Plating	Copper
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	9
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	9
Height	13.5mm
Length	67.5mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED365/9 Product Details

ED365/9 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the ED365 Series.It is equipped with 9 pins.Use it below 105°C.A minimum temperature of -30°C must be maintained for the operation of this device.By Through Hole, the part is mounted.Operating temperature is set to -30°C~105°C.
