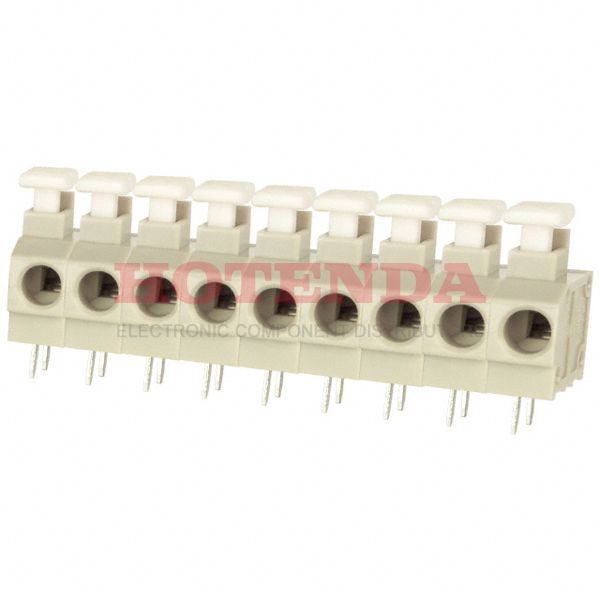

Name: ED4101/9-KD
Brand: On Shore Technology Inc.
SKU: ED4101/9-KD
Price: 3.17000 USD
Availability: InStock

new-10%

ED4101/9-KD

Manufacturer part number:ED4101/9-KD

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Gray, Slate Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screwless - Push Button Clamp 1 Levels 14-20 AWG ED4101

Case Package:SOT-23

Datasheet:ED4101/9-KD Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper
Contact Plating	Copper
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	9
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED4101
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Number of Positions	9
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Gray, Slate
Number of Rows	1
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Grey
Wire Gauge	14-20 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	14 AWG
Positions Per Level	9
Mating Orientation	Horizontal with Board
Wire Termination	Screwless - Push Button Clamp
Number of Positions Per Level	9
Height	15.5mm
Length	46.6mm
Width	12.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED4101/9-KD Product Details

ED4101/9-KD Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the ED4101 Series.There are 9 pins on the device.If the temperature is below 105°C, it's best to use it.-30°C is the minimum temperature for this device.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
