Name: ED505/3DS
Brand: On Shore Technology Inc.
SKU: ED505/3DS
Price: 1.66000 USD
Availability: InStock

new-10%

ED505/3DS

Manufacturer part number:ED505/3DS

Manufacturer:On Shore Technology Inc.

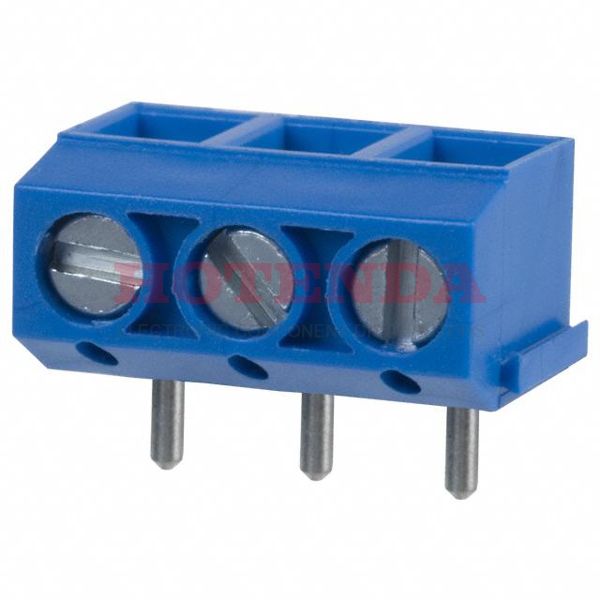

Description:0.197 5.00mm Blue Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG ED505/DS

Case Package:SOT-23

Datasheet:ED505/3DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	3
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED505/DS
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Blue
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	3
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Number of Positions Per Level	3
Height	7.5mm
Length	15mm
Width	10mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED505/3DS Product Details

ED505/3DS Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the ED505/DS Series.Devices with 3 pins are available.You should use it when it's below 105°C.A minimum temperature of -30°C is required for the operation of this device.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -30°C~105°C Operating Temperature.
