Name: ED790/2
Brand: On Shore Technology Inc.
SKU: ED790/2
Price: 1.94000 USD
Availability: InStock

new-10%

ED790/2

Manufacturer part number:ED790/2

Manufacturer:On Shore Technology Inc.

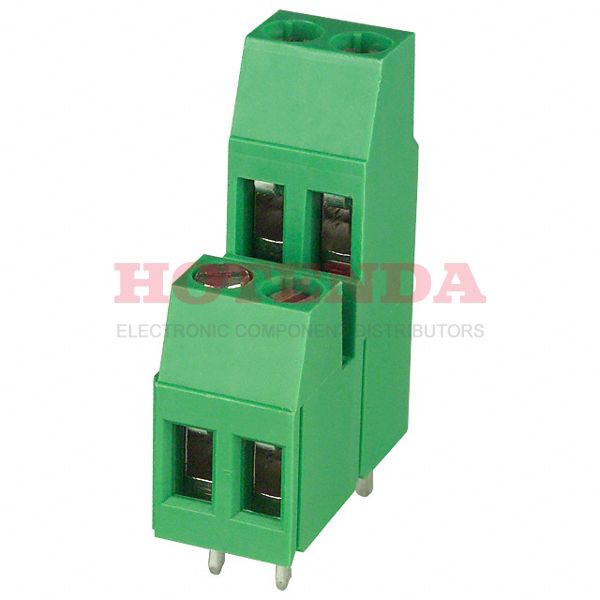

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG ED790

Case Package:SOT-23

Datasheet:ED790/2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	2
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED790
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	2
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
Plating	Copper
Number of Levels	2
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	2
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Height	31.4mm
Length	10.6mm
Width	21.7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

ED790/2 Product Details

ED790/2 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the ED790 Series.Devices with 2 pins are available.You should use it when it's below 105°C.A minimum temperature of -30°C is required for the operation of this device.Through Hole is used to mount the part.In this case, the device operates at -30°C~105°C Operating Temperature.
