Name: ED790/4
Brand: On Shore Technology Inc.
SKU: ED790/4
Price: 6.42000 USD
Availability: InStock

new-10%

ED790/4

Manufacturer part number:ED790/4

Manufacturer:On Shore Technology Inc.

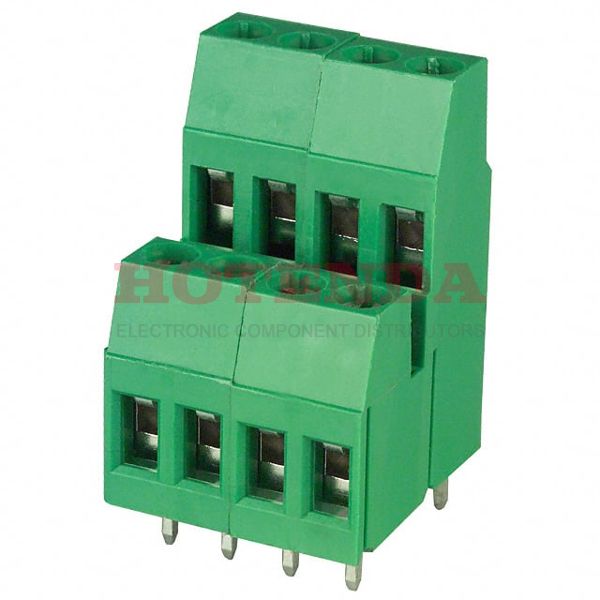

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 2 Levels 12-30 AWG ED790

Case Package:SOT-23

Datasheet:ED790/4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Brass
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	4
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Copper
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	ED790
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	4
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Green
Number of Rows	2
Pitch	0.197 5.00mm
Lead Pitch	5mm
Housing Color	Green
Wire Gauge	12-30 AWG
Voltage	300V
Plating	Copper
Number of Levels	2
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	4
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	4
Height	31.4mm
Length	20.6mm
Width	21.7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

ED790/4 Product Details

ED790/4 Overview

Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the ED790 Series, it can be found in this category.It has 4 pins.Temperatures below 105°C are best for using it.There's a minimum temperature of -30°C for this device.In this case, Through Hole mounts the part.The device is operating at -30°C~105°C Operating Temperature.
