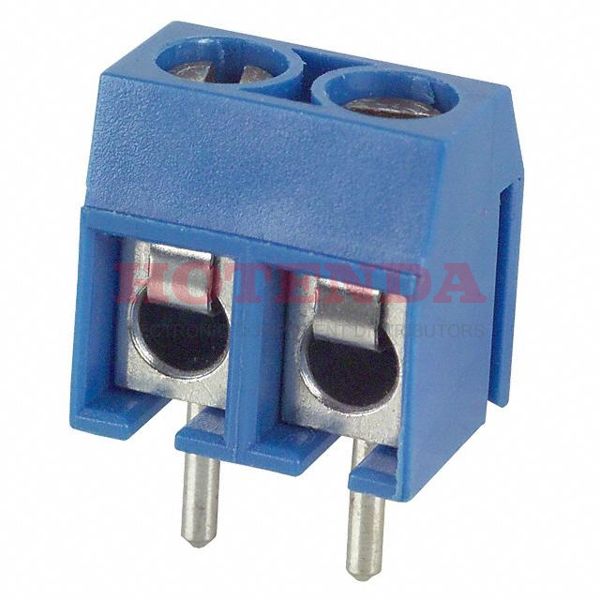

Name: EDZ500/2DS
Brand: On Shore Technology Inc.
SKU: EDZ500/2DS
Price: 1.11000 USD
Availability: InStock

new-10%

EDZ500/2DS

Manufacturer part number:EDZ500/2DS

Manufacturer:On Shore Technology Inc.

Description:0.200 5.08mm Blue Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG EDZ500/DS

Case Package:SOT-23

Datasheet:EDZ500/2DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Brass
Clamp Material - Plating	Steel, Stainless
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	EDZ500/DS
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Blue
Number of Rows	1
Additional Feature	STANDARD: UL 94V-0, PA
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Lead Pitch	5.08mm
Wire Gauge	14-22 AWG
Voltage	300V
Plating	Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	2
Safety Approval	CUL; UL; VDE
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Number of Positions Per Level	2
Height	10mm
Length	10.2mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

EDZ500/2DS Product Details

EDZ500/2DS Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number EDZ500/DS belongs to the EDZ500/DS Series.Further, there are features such as STANDARD: UL 94V-0, PA, to name only a few.There is a Through Hole mount on the part.This device operates at a temperature of -30°C~105°C.
