Name: OSTTA034163
Brand: On Shore Technology Inc.
SKU: OSTTA034163
Price: 1.13000 USD
Availability: InStock

new-10%

OSTTA034163

Manufacturer part number:OSTTA034163

Manufacturer:On Shore Technology Inc.

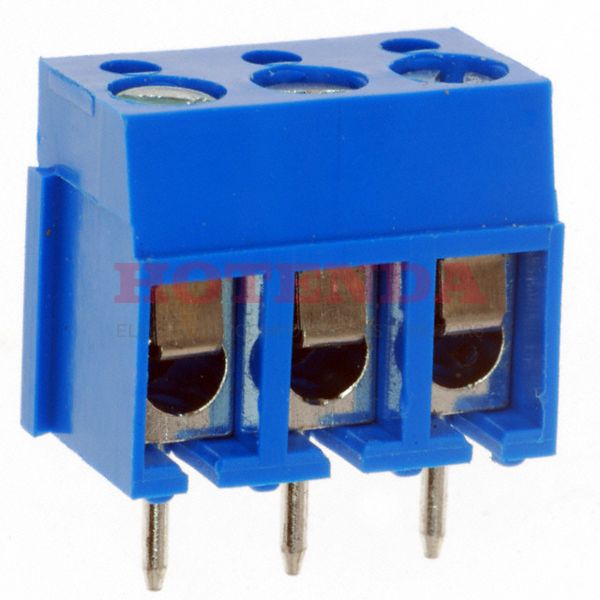

Description:0.200 5.08mm Blue Bulk Thermoplastic Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG OSTTA

Case Package:SOT-23

Datasheet:OSTTA034163 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTA
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	3
Color	Blue
Number of Rows	1
Pitch	0.200 5.08mm
Orientation	Straight
Depth	9mm
Wire Gauge	14-22 AWG
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Plating	Steel
Number of Levels	1
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	3
Safety Approval	CUL; UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Height	13mm
Length	15.94mm
Width	9mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

OSTTA034163 Product Details

OSTTA034163 Overview

Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the OSTTA Series.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -30°C~105°C Operating Temperature.
