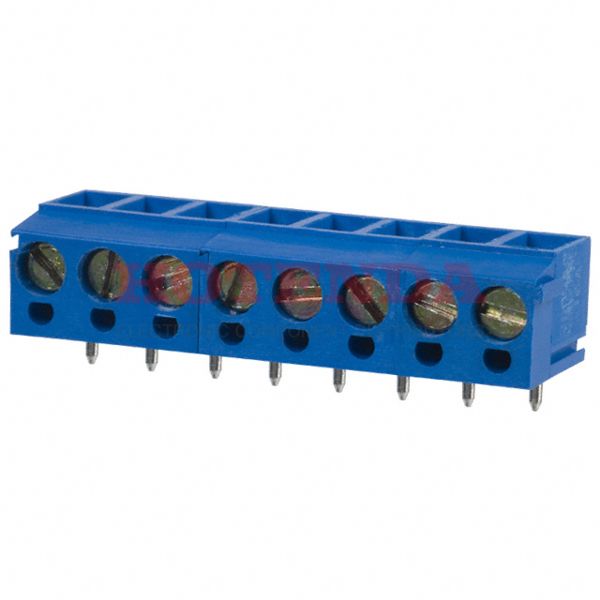

Name: OSTTB080161
Brand: On Shore Technology Inc.
SKU: OSTTB080161
Price: 3.01000 USD
Availability: InStock

new-10%

OSTTB080161

Manufacturer part number:OSTTB080161

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Blue Bulk Thermoplastic Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG OSTTB

Case Package:SOT-23

Datasheet:OSTTB080161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTB
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Wire Gauge	14-22 AWG
Voltage	250V
Plating	Steel
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.3 Nm (2.6 Lb-In)
Number of Ways	8
Safety Approval	CSA; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M3
Number of Positions Per Level	8
Height	9mm
Length	40mm
Width	12.6mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTB080161 Product Details

OSTTB080161 Overview

Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the OSTTB Series.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -30°C~105°C Operating Temperature.
