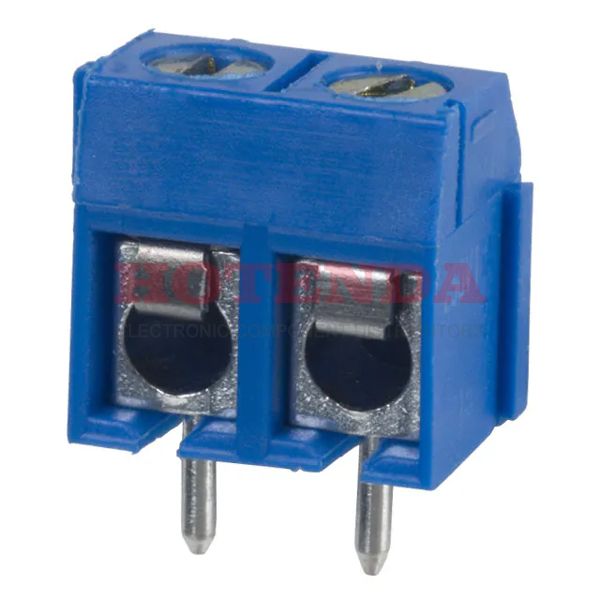

Name: OSTTC020162
Brand: On Shore Technology Inc.
SKU: OSTTC020162
Price: 0.90000 USD
Availability: InStock

new-10%

OSTTC020162

Manufacturer part number:OSTTC020162

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Blue Bulk Thermoplastic Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG OSTTC

Case Package:SOT-23

Datasheet:OSTTC020162 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Tin, Zinc
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTC
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Number of Positions	2
Color	Blue
Number of Rows	1
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	7.5mm
Wire Gauge	14-22 AWG
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	15A
Plating	Steel
Number of Levels	1
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.3 Nm (2.6 Lb-In)
Number of Ways	2
Safety Approval	CSA; CUL; UL; VDE
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Height	9.9mm
Length	11.2mm
Width	7.6mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

OSTTC020162 Product Details

OSTTC020162 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the OSTTC Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -30°C~105°C Operating Temperature.
