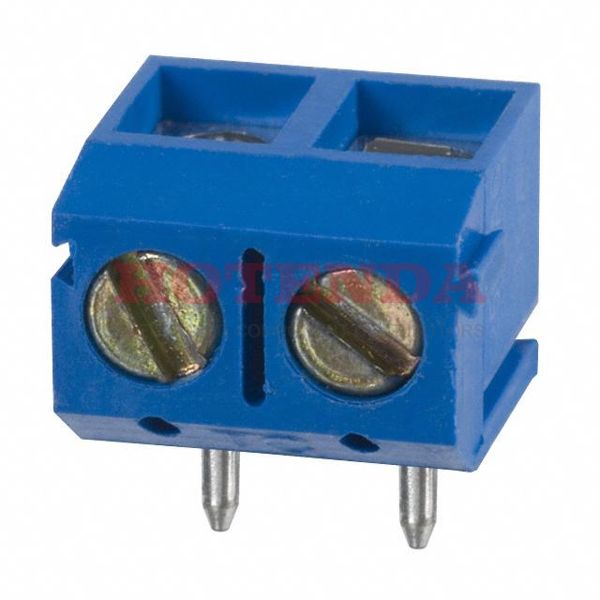

Name: OSTTD020161
Brand: On Shore Technology Inc.
SKU: OSTTD020161
Price: 1.04000 USD
Availability: InStock

new-10%

OSTTD020161

Manufacturer part number:OSTTD020161

Manufacturer:On Shore Technology Inc.

Description:0.197 5.00mm Blue Bulk Thermoplastic Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 14-22 AWG OSTTD

Case Package:SOT-23

Datasheet:OSTTD020161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTD
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.197 5.00mm
Wire Gauge	14-22 AWG
Voltage	250V
Plating	Steel
Number of Levels	1
Current	16A
Wire Gauge (Max)	22 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.3 Nm (2.6 Lb-In)
Number of Ways	2
Safety Approval	CSA; CUL; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.6
Number of Positions Per Level	2
Height	7.5mm
Length	10mm
Width	10mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTD020161 Product Details

OSTTD020161 Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the OSTTD Series.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.Devices operate at -30°C~105°C operating temperatures.
