Name: OSTTE030161
Brand: On Shore Technology Inc.
SKU: OSTTE030161
Price: 1.05000 USD
Availability: InStock

new-10%

OSTTE030161

Manufacturer part number:OSTTE030161

Manufacturer:On Shore Technology Inc.

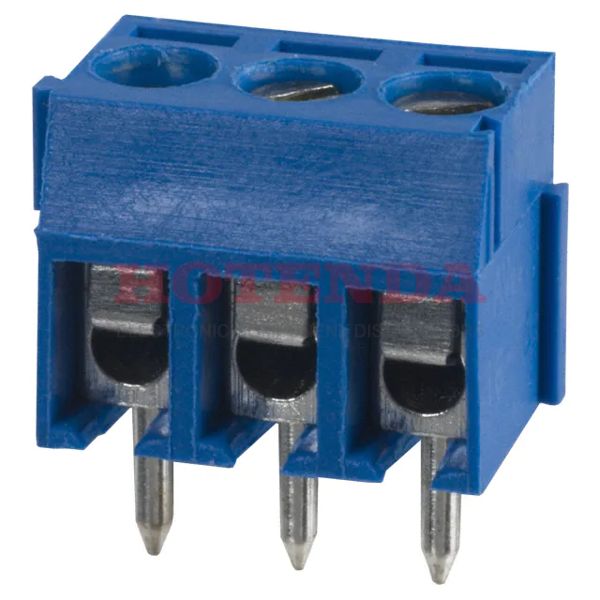

Description:0.138 3.50mm Blue Bulk Thermoplastic Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-26 AWG OSTTE

Case Package:SOT-23

Datasheet:OSTTE030161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTE
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Number of Positions	3
Max Operating Temperature	105°C
Min Operating Temperature	-30°C
Color	Blue
Number of Rows	1
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7mm
Number of Contacts	3
Housing Color	Blue
Wire Gauge	16-26 AWG
Voltage	125V
Max Current Rating	10A
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Torque - Screw	0.2 Nm (1.7 Lb-In)
Positions Per Level	3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	3
Height	8.4mm
Length	11.5mm
Width	7mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTE030161 Product Details

OSTTE030161 Overview

Mounting type is Through Hole.To package the product, we use a Bulk case.This product is from the OSTTE Series.It is best used at temperatures below 105°C.-30°C is the minimum temperature this device can operate at.A number of advantages are provided by its Interlocking (Side) feature.Mounted by Through Hole.Device runs at -30°C~105°C Operating Temperature.
