Name: OSTTF080161
Brand: On Shore Technology Inc.
SKU: OSTTF080161
Price: 2.32000 USD
Availability: InStock

new-10%

OSTTF080161

Manufacturer part number:OSTTF080161

Manufacturer:On Shore Technology Inc.

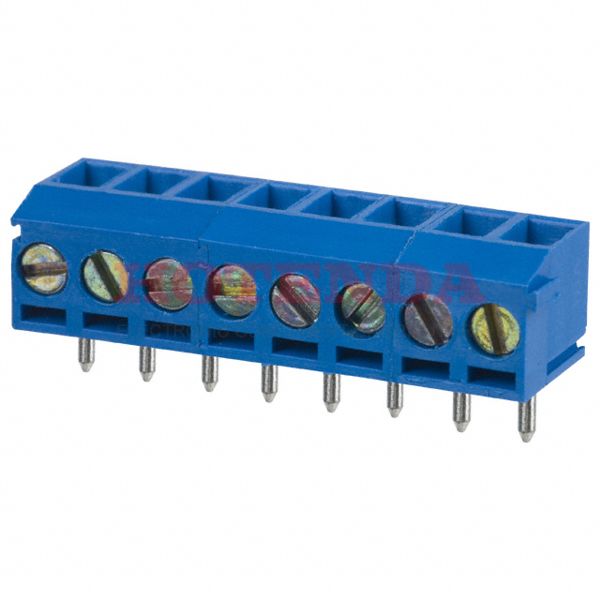

Description:0.138 3.50mm Blue Bulk Thermoplastic Through Hole Vertical with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-26 AWG OSTTF

Case Package:SOT-23

Datasheet:OSTTF080161 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Brass
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Steel, Stainless
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTF
Feature	Interlocking (Side)
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Blue
Number of Rows	1
Pitch	0.138 3.50mm
Wire Gauge	16-26 AWG
Voltage	125V
Plating	Steel
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.2 Nm (1.7 Lb-In)
Number of Ways	8
Safety Approval	CSA; UL
Mating Orientation	Vertical with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2
Number of Positions Per Level	8
Height	7mm
Length	28mm
Width	8.4mm
RoHS Status	ROHS3 Compliant
Flammability Rating	UL94 V-0

OSTTF080161 Product Details

OSTTF080161 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the OSTTF Series.It is more powerful in many ways due to its Interlocking (Side) feature.It is mounted by Through Hole.It operates at an operating temperature of -30°C~105°C.
