Name: OSTTG035100B
Brand: On Shore Technology Inc.
SKU: OSTTG035100B
Price: 1.18000 USD
Availability: InStock

new-10%

OSTTG035100B

Manufacturer part number:OSTTG035100B

Manufacturer:On Shore Technology Inc.

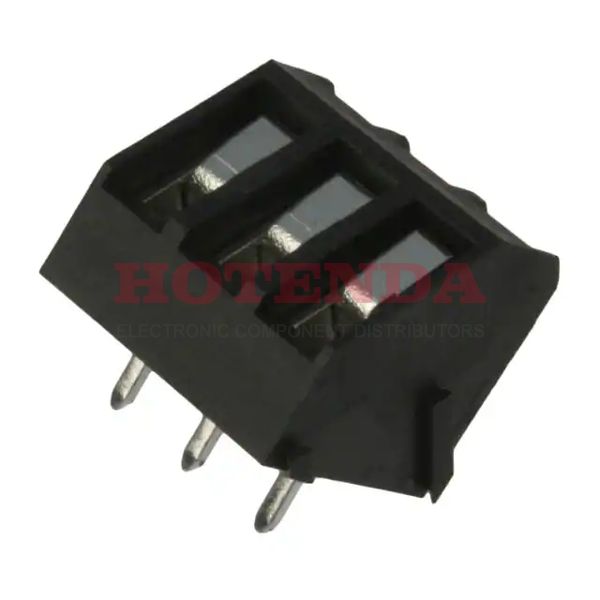

Description:0.200 5.08mm Black Bulk Thermoplastic Through Hole Angled Screw - Rising Cage Clamp 1 Levels 12-24 AWG OSTTG

Case Package:SOT-23

Datasheet:OSTTG035100B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Contact Material - Plating	Brass
Screw Material - Plating	Steel - Zinc Plated
Operating Temperature	-30°C~105°C
Packaging	Bulk
Series	OSTTG
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Number of Rows	1
Pitch	0.200 5.08mm
Wire Gauge	12-24 AWG
Voltage	300V
Plating	Brass, Steel
Number of Levels	1
Current	15A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.4 Nm (3.5 Lb-In)
Positions Per Level	3
Number of Ways	3
Safety Approval	CUL; UL
Mating Orientation	Angled
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2.5
RoHS Status	ROHS3 Compliant

OSTTG035100B Product Details

OSTTG035100B Overview

Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the OSTTG Series of products.A number of features make it more powerful because of its Interlocking (Side) feature.Through Hole mounts the part.There is no operating temperature for the device.
