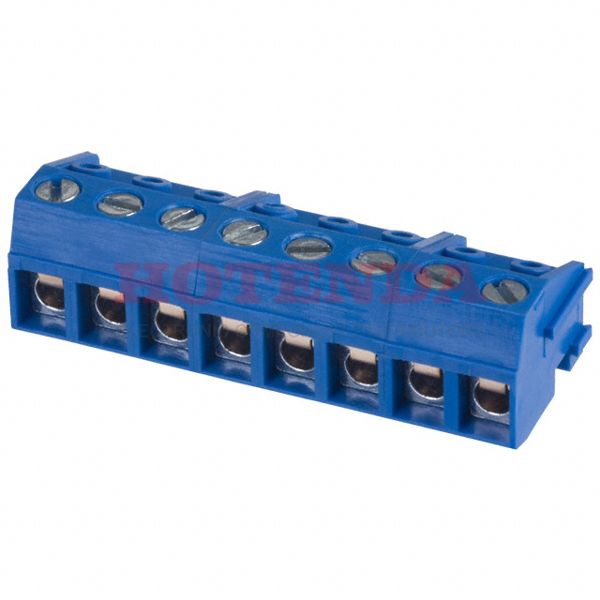

OSTTH080160

OSTTH080160

OSTTH080160

On Shore Technology Inc.

OSTTH080160 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from On Shore Technology Inc. stock available on our website

SOT-23

OSTTH080160 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Contact MaterialBrass
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Operating Temperature-40°C~115°C
PackagingBulk
Series OSTTH
Feature Interlocking (Side)
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Plug for Unshrouded Header
Number of Positions 8
Color Blue
Number of Rows 1
Additional FeatureSTANDARD: UL 94V-0, THERMOPLASTIC
Pitch 0.197 5.00mm
Termination Style Screw
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 14 AWG
Contact Mating Finish Nickel
Number of Decks 1
Wire Gauge or Range - AWG 14-22 AWG
Torque - Screw 0.4 Nm (3.5 Lb-In)
Number of Ways 8
Safety Approval CSA; TUV; UL; VDE
Wire Gauge or Range - mm² 0.34-1.5mm2
Wire Strip Length 5-6mm
Height 11mm
Length 40mm
Width 13.6mm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
In-Stock:3426 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.47000$2.47
10$1.89300$18.93
25$1.76200$44.05
50$1.59500$79.75
100$1.55880$155.88
250$1.37752$344.38
500$1.26876$634.38

OSTTH080160 Product Details

OSTTH080160 Overview


Free Hanging (In-Line) indicates that the device is mounted.The product is packaged in a Bulk case.This product is part of the OSTTH Series.Additionally, there are other features such as STANDARD: UL 94V-0, THERMOPLASTIC.There are a number of advantages to its Interlocking (Side) feature.It is mounted by Free Hanging.Device runs in -40°C~115°C operating temperature.

OSTTH080160 Features


OSTTH series

OSTTH080160 Applications


There are a lot of On Shore Technology Inc. OSTTH080160 Terminal Blocks applications.

  • Electrical substations
  • Embedded systems
  • Military Technology
  • All Electrical Machinery
  • Medical technology
  • Energy efficient lighting (LED)
  • Variable speed/frequency drivers
  • LED municipal outdoor and street lighting
  • Data Technology
  • Communication
