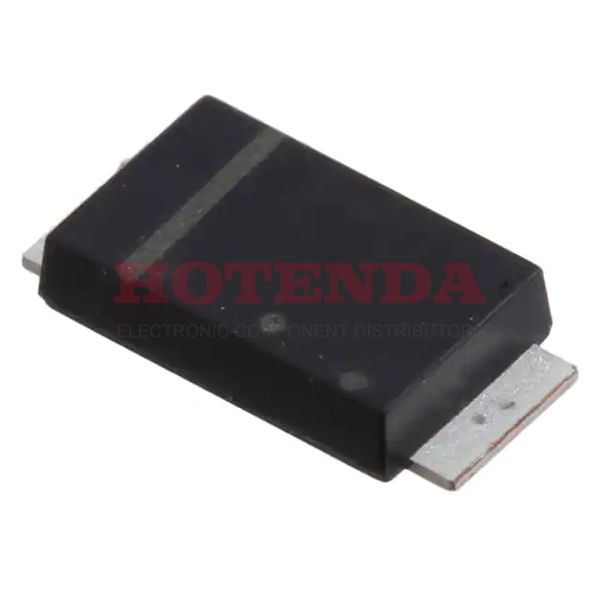

Name: DB2440400L
Brand: Panasonic Electronic Components
SKU: DB2440400L
Availability: InStock

new-10%

DB2440400L

Manufacturer part number:DB2440400L

Manufacturer:Panasonic Electronic Components

Description:DB2440400L datasheet pdf and Diodes - Rectifiers - Single product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:DB2440400L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-128
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2007
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	DB24404
Pin Count	2
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	50μA @ 40V
Voltage - Forward (Vf) (Max) @ If	530mV @ 3A
Forward Current	3A
Operating Temperature - Junction	125°C Max
Max Surge Current	60A
Output Current-Max	3A
Application	GENERAL PURPOSE
Forward Voltage	530mV
Max Reverse Voltage (DC)	40V
Average Rectified Current	3A
Number of Phases	1
Reverse Recovery Time	30 ns
Peak Reverse Current	50μA
Max Repetitive Reverse Voltage (Vrrm)	40V
Capacitance @ Vr, F	85pF @ 10V 1MHz
Peak Non-Repetitive Surge Current	60A
Max Forward Surge Current (Ifsm)	60A
Height	850μm
Length	3.8mm
Width	2.4mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

DB2440400L Product Details

DB2440400L Overview

The average rectified current for this device is 3A volts.Forward current is allowed to reach a value of zero.Surge currents are limited to 60A.Output current maximum is 3A.The datasheets show a peak reverse of 50μA, as shown in the data chart.
