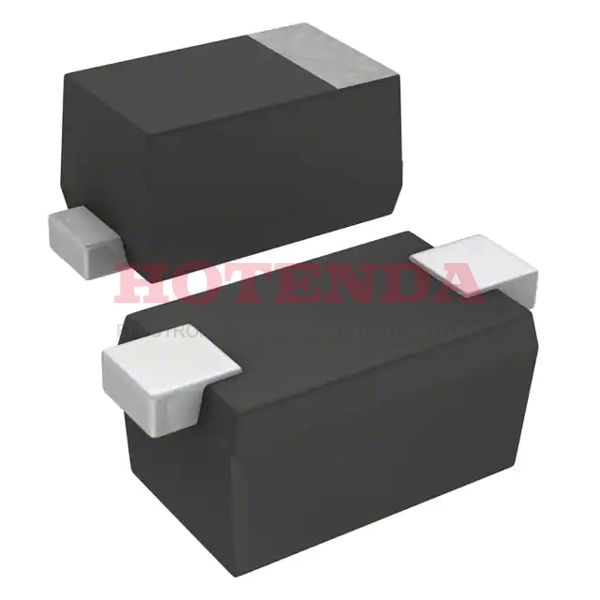

Name: DB2730900L
Brand: Panasonic Electronic Components
SKU: DB2730900L
Availability: InStock

new-10%

DB2730900L

Manufacturer part number:DB2730900L

Manufacturer:Panasonic Electronic Components

Description:DB2730900L datasheet pdf and Diodes - Rectifiers - Single product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:DB2730900L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Number of Pins	2
Diode Element Material	SILICON
Packaging	Cut Tape (CT)
Published	2005
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.60
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	DB27309
Number of Elements	1
Element Configuration	Single
Speed	Small Signal =< 200mA (Io), Any Speed
Diode Type	Schottky
Current - Reverse Leakage @ Vr	2μA @ 30V
Voltage - Forward (Vf) (Max) @ If	580mV @ 100mA
Forward Current	100mA
Operating Temperature - Junction	125°C Max
Forward Voltage	580mV
Max Reverse Voltage (DC)	30V
Average Rectified Current	100mA
Reverse Recovery Time	1 ns
Peak Reverse Current	2μA
Max Repetitive Reverse Voltage (Vrrm)	30V
Capacitance @ Vr, F	9pF @ 0V 1MHz
Peak Non-Repetitive Surge Current	1A
Max Forward Surge Current (Ifsm)	1A
Frequency Band	VERY HIGH FREQUENCY
Height	520μm
Length	1mm
Width	600μm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DB2730900L Product Details

DB2730900L Overview

A rectified current of 100mA volts is averaged for this device.The allowable value of forward current reaches 100mA.Using the data chart, the peak reverse is 2μA in the datasheets.
