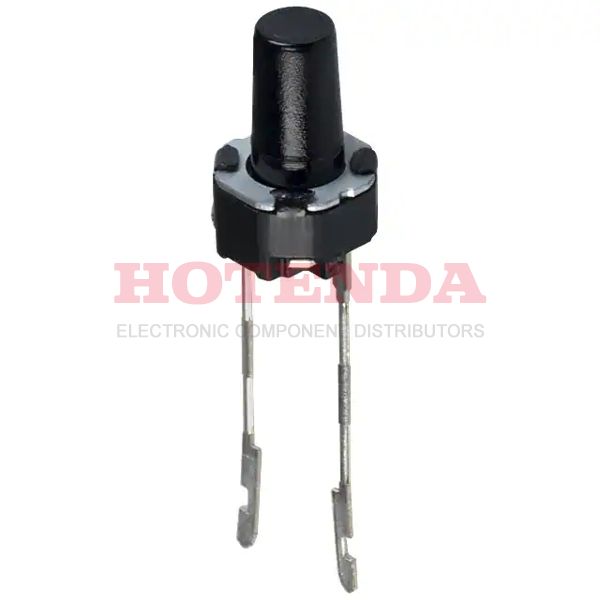

EVQ-11L09K

Name: EVQ-11L09K
Brand: Panasonic Electronic Components
SKU: EVQ-11L09K
Availability: InStock

new-10%

Manufacturer part number:EVQ-11L09K

Manufacturer:Panasonic Electronic Components

Description:EVQ-11L09K datasheet pdf and Tactile Switches product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:EVQ-11L09K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Operating Temperature	-20°C~70°C
Packaging	Tape & Box (TB)
Published	2011
Series	EVQ11
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
Max Operating Temperature	70°C
Min Operating Temperature	-20°C
Voltage - Rated DC	15V
Orientation	Straight
Current Rating	20mA
Termination Style	PC Pin
Actuator Type	Standard
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Resistance	50mOhm
Electrical Life	100000 cycles
Throw Configuration	SPST
Illumination	Non-Illuminated
Max Voltage Rating (DC)	15V
Mechanical Life	100,000 Cycles
Contact Current Rating	20mA
Operating Force	160gf
Illumination Type	Illuminated, Non-Illuminated
Actuator Orientation	Top Actuated
Outline	6.00mm x 6.00mm
Contact Rating @ Voltage	0.02A @ 15VDC
Switch Travel	0.25mm
Actuator Height off PCB, Vertical	9.50mm
Actuator Length	5.6mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Lead Free	Lead Free
