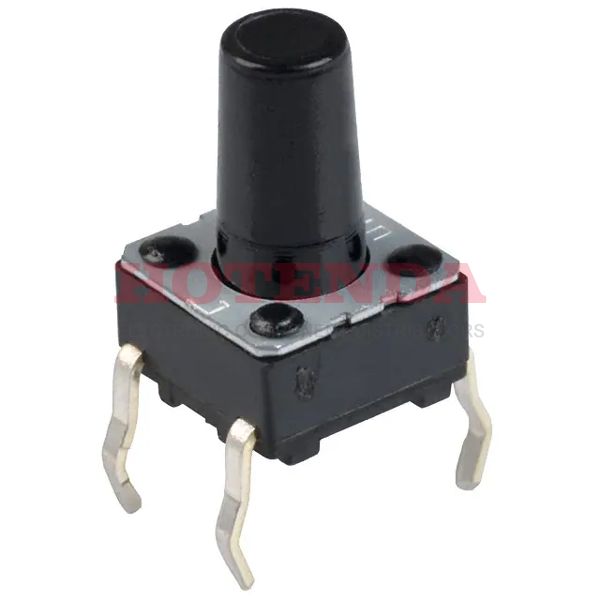

EVQ-PAC09K datasheet pdf and Tactile Switches product details from Panasonic Electronic Components stock available on our website
SOT-23
EVQ-PAC09K Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
8 Weeks
Contact Plating
Gold, Silver
Mount
Through Hole
Mounting Type
Through Hole
Operating Temperature
-20°C~70°C
Packaging
Bulk
Published
2011
Series
EVQPA
JESD-609 Code
e4
Pbfree Code
yes
Part Status
Last Time Buy
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Termination
PC Pins
ECCN Code
EAR99
Number of Positions
2
Terminal Finish
Gold/Silver (Au/Ag)
Color
Black
Voltage - Rated
15V
HTS Code
8536.50.90.40
Voltage - Rated DC
15V
Packing Method
BAG; BOX
Orientation
Straight
Depth
7.8mm
Current Rating
20mA
Termination Style
PC Pin
Actuator Type
Standard
Circuit
SPST-NO
Switch Function
Off-Mom
Contact Resistance
50mOhm
Insulation Resistance
50MOhm
Max Current Rating
20mA
Electrical Life
100000 cycles
Throw Configuration
SPST
Illumination
Non-Illuminated
Max Voltage Rating (DC)
15V
Mechanical Life
100,000 Cycles
Switch Type
KEYPAD SWITCH
Contact Current Rating
20mA
Operating Force
100gf
Illumination Type
Illuminated, Non-Illuminated
Actuator Orientation
Top Actuated
Outline
6.00mm x 6.00mm
Contact Rating @ Voltage
0.02A @ 15VDC
Switch Travel
0.25mm
Actuator Height off PCB, Vertical
9.50mm
Number of Switches
1
Contact Bounce Time-Max
8ms
Height
9.5mm
Length
6mm
Width
6mm
Actuator Length
5.6mm
Radiation Hardening
No
REACH SVHC
Unknown
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:1285 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.21000
$0.21
10
$0.20200
$2.02
25
$0.19560
$4.89
50
$0.18840
$9.42
100
$0.17800
$17.8
250
$0.16752
$41.88
500
$0.16054
$80.27
EVQ-PAC09K Product Details
EVQ-PAC09K Features
A wealth of product types: With or without a ground terminal, vertical type, snap-in terminals, etc. Can be automatically dip-soldered: Integral molding of the terminals and main body prevents the escape of flux.
EVQ-PAC09K Applications
Operating switches for other electronic equipment
