LN1371GTRP datasheet pdf and LED Indication - Discrete product details from Panasonic Electronic Components stock available on our website
SOT-23
LN1371GTRP Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
2-SMD, Gull Wing
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2001
Size / Dimension
1.70mm Lx1.25mm W
JESD-609 Code
e4
Pbfree Code
yes
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
Terminal Finish
GOLD OVER NICKEL
Color
Green
HTS Code
8541.40.20.00
Packing Method
BULK
Number of Functions
1
Reach Compliance Code
unknown
Base Part Number
LN1*71
Operating Temperature (Max)
85°C
Operating Temperature (Min)
-25°C
Configuration
Standard
Voltage - Forward (Vf) (Typ)
2.03V
Optoelectronic Device Type
SINGLE COLOR LED
Current - Test
10mA
Lens Style
Rectangle with Flat Top
Lens Size
1.70mmx1.25mm
Luminous Intensity
2.6 mcd
Lens Transparency
Diffused
Wavelength - Peak
565nm
Forward Current-Max
0.02A
Height
1mm
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:1737 items

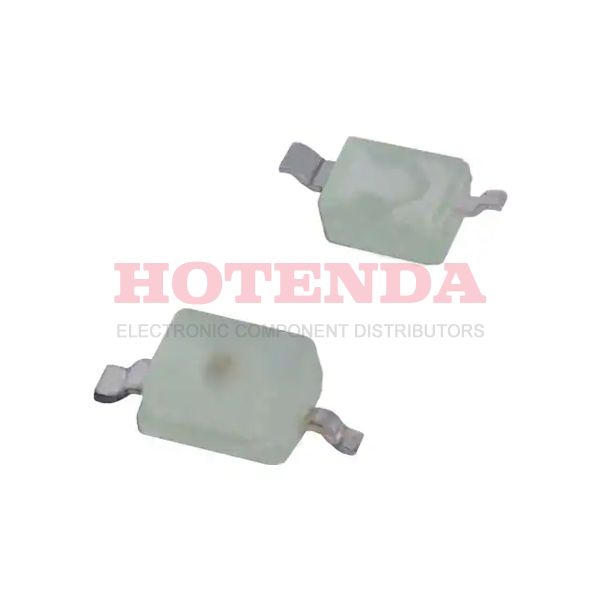

LN1371GTRP Product Details
The Panasonic LED Indication - Discrete LN1371GTRP is a green, diffused, surface-mount LED. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle of 120° and a low forward voltage of 2.1V. It is also RoHS compliant and has a long life expectancy of up to 100,000 hours. The LED is suitable for use in a variety of applications, including backlighting, indicators, and displays. It is also suitable for use in automotive, industrial, and consumer electronics. The LED is designed to be reliable and efficient, and is capable of providing bright, consistent illumination.
