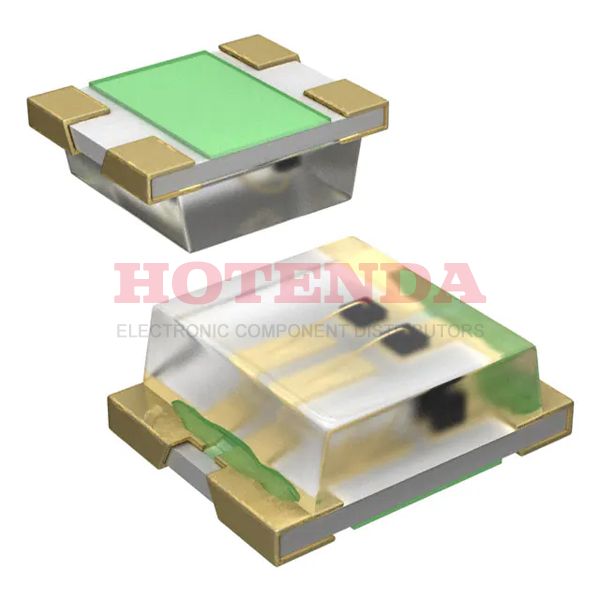

Name: LNJ115W8HRA
Brand: Panasonic Electronic Components
SKU: LNJ115W8HRA
Availability: InStock

new-10%

LNJ115W8HRA

Manufacturer part number:LNJ115W8HRA

Manufacturer:Panasonic Electronic Components

Description:LNJ115W8HRA datasheet pdf and LED Indication - Discrete product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:LNJ115W8HRA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0605 (1613 Metric)
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2004
Size / Dimension	1.60mm Lx1.25mm W
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	4
Color	Blue, Red
HTS Code	8541.40.20.00
Packing Method	BULK
Number of Functions	1
Terminal Pitch	1.3mm
Reach Compliance Code	unknown
Base Part Number	LNJ115W
Case Code (Metric)	1613
Case Code (Imperial)	0605
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-30°C
Configuration	Independent
Voltage - Forward (Vf) (Typ)	3.2V Blue 1.72V Red
Optoelectronic Device Type	DUAL COLOR LED
Current - Test	5mA Blue 10mA Red
Luminous Intensity	6.7 mcd
Millicandela Rating	8.4mcd Blue, 6.7mcd Red
Lens Transparency	Diffused
Wavelength - Peak	470nm Blue 655nm Red
Lens Color	White
Forward Current-Max	0.02A
Height	550μm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About LNJ115W8HRA

The LNJ115W8HRA from Panasonic Electronic Components is a high-performance microcontroller designed for a wide range of embedded applications. This component features LNJ115W8HRA datasheet pdf and LED Indication - Discrete product details from Panasonic Electronic Components stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the LNJ115W8HRA, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
