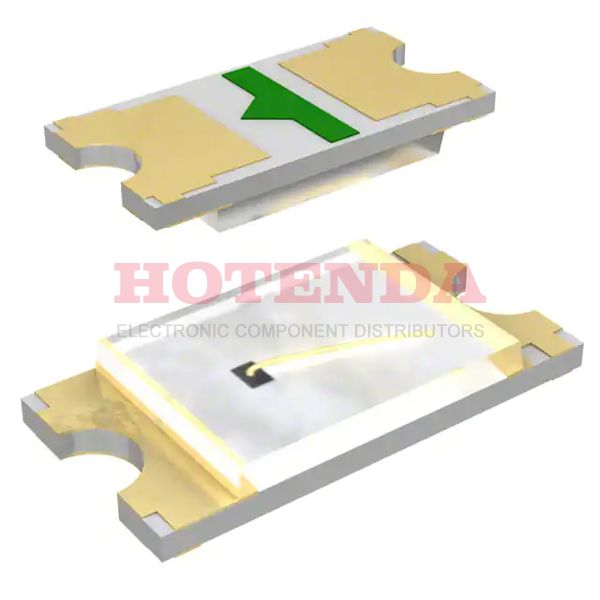

LNJ337W83RA

LNJ337W83RA

LNJ337W83RA

Panasonic Electronic Components

LED GREEN ESS II SMD

SOT-23

LNJ337W83RA Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Number of Pins 2
Shape RECTANGULAR
PackagingTape & Reel (TR)
Published 2009
Size / Dimension 1.60mm Lx0.80mm W
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Max Operating Temperature85°C
Min Operating Temperature -30°C
Color Green
Subcategory Visible LEDs
Packing Method BULK
Max Power Dissipation55mW
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ*37
Case Code (Metric) 1608
Case Code (Imperial) 0603
Configuration Standard
Power Dissipation55mW
Voltage - Forward (Vf) (Typ) 1.95V
Optoelectronic Device Type SINGLE COLOR LED
Forward Current5mA
Lens Style Rectangle with Flat Top
Lens Size 1.10mmx0.80mm
Luminous Intensity7.5 mcd
Millicandela Rating 7.5mcd
Wavelength - Peak 575nm
Reverse Voltage4V
Wavelength - Dominant 572nm
Number of LEDs 1
Ambient Temperature Range High85°C
Height 250μm
REACH SVHC Yes
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:3459 items

LNJ337W83RA Product Details

The Panasonic LED Indication - Discrete LNJ337W83RA is a high-performance, energy-efficient LED light source designed for a variety of applications. This LED is a green ESS II SMD (Surface Mount Device) with a wide viewing angle of 120°. It has a luminous intensity of 10,000 mcd and a forward voltage of 2.1V. The LED is RoHS compliant and has a long life expectancy of up to 100,000 hours. It is also highly resistant to shock and vibration, making it ideal for use in harsh environments. The LNJ337W83RA is a reliable and cost-effective solution for a variety of lighting needs.
