Name: LNJ808R8ERA
Brand: Panasonic Electronic Components
SKU: LNJ808R8ERA
Availability: InStock

new-10%

LNJ808R8ERA

Manufacturer part number:LNJ808R8ERA

Manufacturer:Panasonic Electronic Components

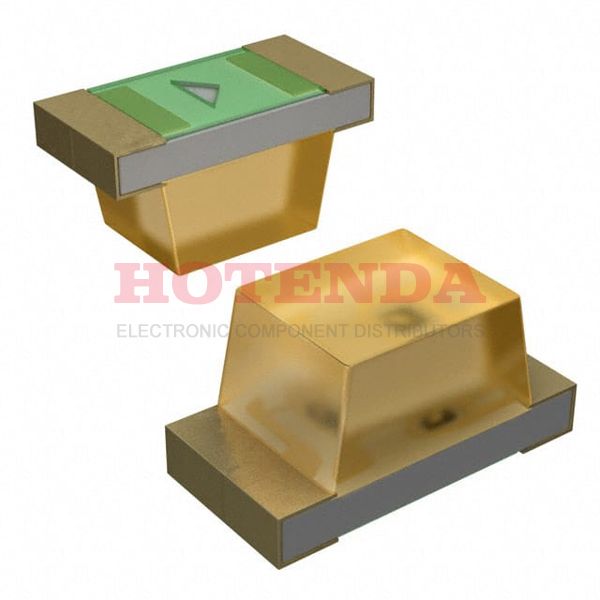

Description:LED ORANGE SS TYPE LED SMD

Case Package:SOT-23

Datasheet:LNJ808R8ERA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Shape	RECTANGULAR
Packaging	Tape & Reel (TR)
Published	2004
Size / Dimension	1.60mm Lx0.80mm W
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
Terminal Finish	Gold (Au)
Color	Orange
HTS Code	8541.40.20.00
Subcategory	Visible LEDs
Packing Method	BULK
Number of Functions	1
Terminal Pitch	1.3mm
Reach Compliance Code	unknown
Base Part Number	LNJ*08
Case Code (Metric)	1608
Case Code (Imperial)	0603
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-25°C
Configuration	Standard
Voltage - Forward (Vf) (Typ)	1.8V
Viewing Angle	150 deg
Optoelectronic Device Type	SINGLE COLOR LED
Current - Test	5mA
Lens Style	Rectangle with Flat Top
Lens Size	0.90mmx0.80mm
Luminous Intensity	1.1 mcd
Wavelength - Peak	630nm
Forward Current-Max	0.01A
Forward Voltage-Max	2.4V
Reverse Voltage-Max	3V
Height	800μm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

About LNJ808R8ERA

The LNJ808R8ERA from Panasonic Electronic Components is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED ORANGE SS TYPE LED SMD.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the LNJ808R8ERA, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
