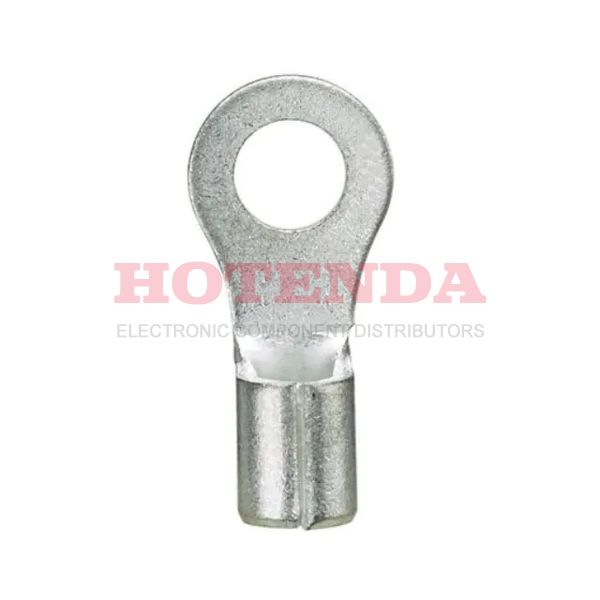

P14-12R-L datasheet pdf and Terminals - Ring Connectors product details from Panduit Corp stock available on our website
SOT-23
P14-12R-L Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Weight
117.934016g
Packaging
Bulk
Series
Pan-Term®
Published
2003
Feature
Brazed Seam, Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Blue
HTS Code
8536.90.40.00
Orientation
Straight
Depth
18.3mm
Contact Finish
Tin
Wire Gauge
14-18 AWG
Wire Gauge (Max)
18 AWG
Wire Gauge (Min)
14 AWG
Wire/Cable Gauge
14 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation
Non-Insulated
Terminal Type
Circular
Stud/Tab Size
1/2 Stud
Length
30.5mm
Width
18.3mm
Thickness
0.030 0.76mm
Length - Overall
1.200 30.48mm
Width - Outer Edges
0.720 18.29mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:7423 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.00000
$1
10
$0.97400
$9.74
25
$0.95120
$23.78
50
$0.92800
$46.4
100
$0.88160
$88.16
500
$0.85840
$429.2
P14-12R-L Product Details
Panduit Terminals - Ring Connectors P14-12R-L are designed to provide a secure connection for 18-14 AWG non-insulated wires. These terminals are made from high-quality copper alloy and feature a tin-plated finish for superior corrosion resistance. The ring connectors feature a unique design that allows for easy installation and removal, while providing a secure connection. The terminals are UL listed and CSA certified for safety and reliability. They are ideal for use in a variety of applications, including automotive, industrial, and electrical. With their superior performance and reliability, Panduit Terminals - Ring Connectors P14-12R-L are the perfect choice for any wiring project.
