PMNF1-3R-C Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
4 Weeks
Contact Material
Copper
Contact Plating
Tin
Mount
Free Hanging
Mounting Type
Free Hanging (In-Line)
Material
Nylon
Weight
81.646627g
Material - Insulation
Polyamide (PA), Nylon
Packaging
Bulk
Series
Pan-Term®
Published
2006
Feature
Serrated Termination
Part Status
Active
Moisture Sensitivity Level (MSL)
Not Applicable
Termination
Crimp
ECCN Code
EAR99
Color
Red
Voltage - Rated
600V
HTS Code
8536.90.40.00
Depth
5.84mm
Wire Gauge
18-22 AWG
Wire Gauge (Max)
22 AWG
Wire Gauge (Min)
18 AWG
Terminal and Terminal Block Type
RING TERMINAL
Insulation Diameter
0.148 (3.76mm)
Insulation
Insulated
Terminal Type
Circular
Wire Cross Section
1 mm2
Stud/Tab Size
M3 Stud
Terminal Gender
FEMALE
Length
19.3mm
Width
5.8mm
Length - Overall
0.760 19.30mm
Width - Outer Edges
0.230 5.84mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
In-Stock:5216 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.067283
$1.067283
10
$1.006870
$10.0687
100
$0.949878
$94.9878
500
$0.896111
$448.0555
1000
$0.845388
$845.388
PMNF1-3R-C Product Details

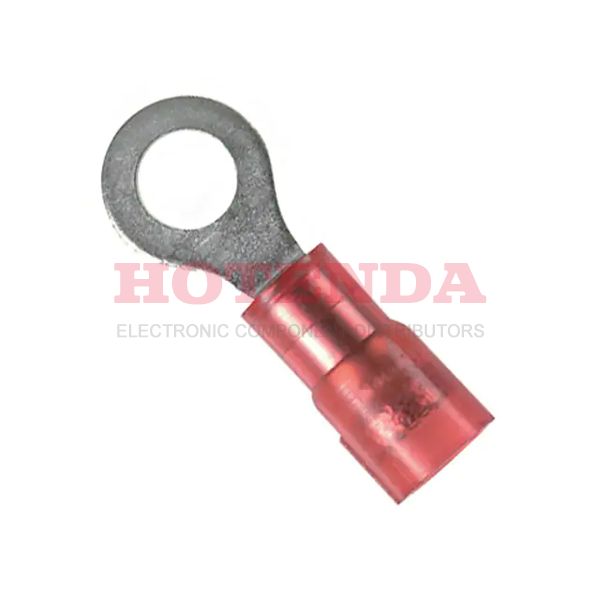

Description: Panduit PMNF1-3R-C Terminals Metric Ring Terminal funnel entry, nylar insulated are designed for use in a variety of electrical applications. These terminals are made from high-quality materials and feature a funnel entry design for easy wire insertion. The terminals are nylar insulated for superior protection against corrosion and abrasion.
Features: • Funnel entry design for easy wire insertion • Nylar insulated for superior protection against corrosion and abrasion • High-quality materials for reliable performance • UL listed and CSA certified • RoHS compliant
Applications: Panduit PMNF1-3R-C Terminals Metric Ring Terminal funnel entry, nylar insulated are suitable for use in a variety of electrical applications, including automotive, marine, and industrial. They are ideal for use in applications where reliable connections are required.
