1604841

1604841

1604841

Phoenix Contact

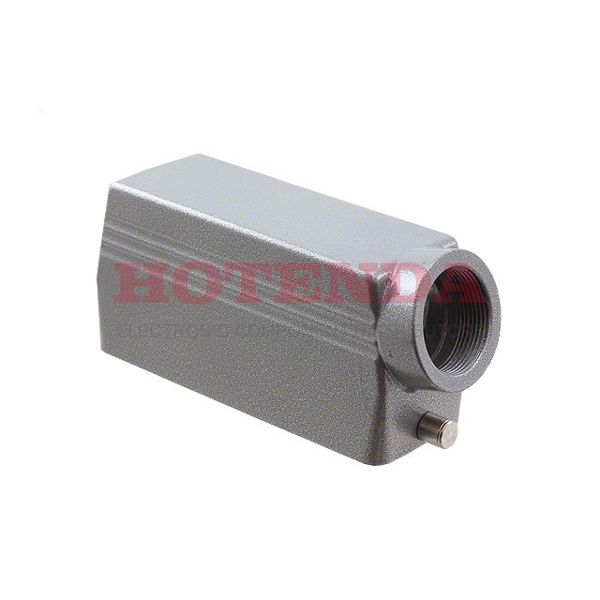

1604841 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

SOT-23

1604841 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Material Brass
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Published 2011
Series HEAVYCON® B
Size / Dimension 4.724Lx1.772W x 2.362 H 120.00mmx45.00mmx60.00mm
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Connector Type Hood
Max Operating Temperature125°C
Min Operating Temperature -40°C
Gender Female
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
ELV Compliant
Size B24
Thread SizeM32
Lock Location Locking Clip (1) on Base Bottom
Housing Finish Powder Coated
Height 59.9948mm
Length 119.9896mm
Width 45.0088mm
RoHS StatusRoHS Compliant
Lead Free Not Applicable
Ratings Dust Tight, IP65, Water Resistant
In-Stock:1949 items

1604841 Product Details

1604841 Overview


The connector type Hood refers to the connector type.We package the product with a Bulk case.A product of the HEAVYCON? B Series, it belongs to the range of products of that series.It is best used at temperatures below 125°C.This device must operate at a minimum temperature of -40°C.-40°C~125°C Operating Temperature is the default.

1604841 Features


HEAVYCON? B series

1604841 Applications


There are a lot of Phoenix Contact 1604841 Heavy Duty Connectors applications.

  • Telecommunications
  • Automotive Electronics
  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Anywhere power is distributed
  • Instrumentation
  • Data Technology
  • Energy efficient lighting (LED)
  • Blowers
  • All Electrical Machinery
