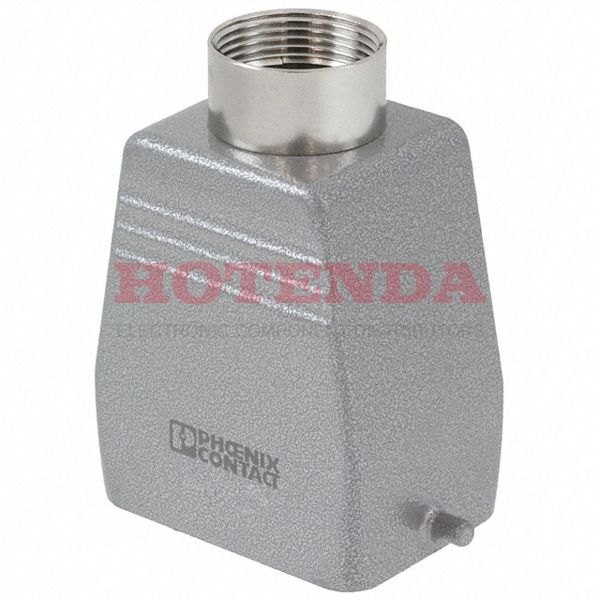

1678198

1678198

1678198

Phoenix Contact

1678198 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

SOT-23

1678198 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Published 2011
Series HEAVYCON® B
Size / Dimension 2.362Lx1.693W x 2.835 H 60.00mmx43.00mmx72.00mm
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Hood
Number of Positions 6
Max Operating Temperature125°C
Min Operating Temperature -40°C
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Top Entry
Housing Color Gray
Size B6
Thread SizePG21
Lock Location Locking Clip (1) on Base Bottom
Housing Finish Powder Coated
Height 72.009mm
Length 59.9948mm
Width 43.0022mm
RoHS StatusRoHS Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:1510 items

1678198 Product Details

1678198 Overview


The product comes in a package of Hood.It has been determined that a Bulk case is necessary to package the product.The product belongs to the HEAVYCON? B Series.It is best used at temperatures below 125°C.Temperature must be -40°C to operate this device.Device runs in -40°C~125°C operating temperature.

1678198 Features


HEAVYCON? B series

1678198 Applications


There are a lot of Phoenix Contact 1678198 Heavy Duty Connectors applications.

  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • Blowers
  • Data Technology
  • Industrial Automation
  • LED municipal outdoor and street lighting
  • Energy efficient lighting (LED)
  • Datacom
  • Telecommunications
  • Refrigeration control
