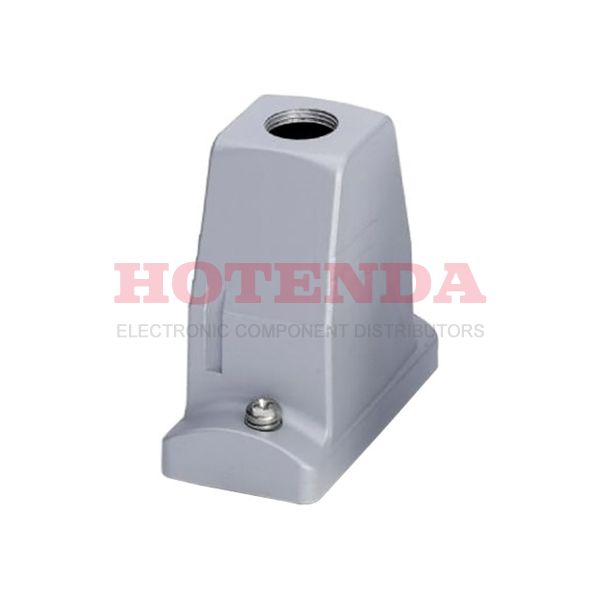

Name: 1690024
Brand: Phoenix Contact
SKU: 1690024
Availability: InStock

new-10%

1690024

Manufacturer part number:1690024

Manufacturer:Phoenix Contact

Description:1690024 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1690024 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Package / Case	100
Housing Material	Aluminum, Die Cast
Operating Temperature	-40°C~125°C
Packaging	Bulk
Published	2011
Series	HEAVYCON-ADVANCE® EMV
Size / Dimension	4.134Lx2.244W x 3.937 H 105.00mmx57.00mmx100.00mm
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	Hood
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Color	Silver
Ingress Protection	IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Style	Top Entry
Housing Color	Silver
Size	B10
Thread Size	M25
Lock Location	Screw Locks on Hood
Housing Finish	EMC Coating
Height	99.9998mm
Length	105.0036mm
Width	56.9976mm
RoHS Status	RoHS Compliant
Ratings	Dust Tight, IP66, Water Resistant, Waterproof

1690024 Product Details

1690024 Overview

The connector type Hood refers to the connector type.We package the product with a Bulk case.The product belongs to the HEAVYCON-ADVANCE? EMV Series.The ideal temperature for using it is below 125°C.There must be a minimum temperature of -40°C.100 means there is a device enclosed in the packaging.Operating temperature is set to -40°C~125°C.
