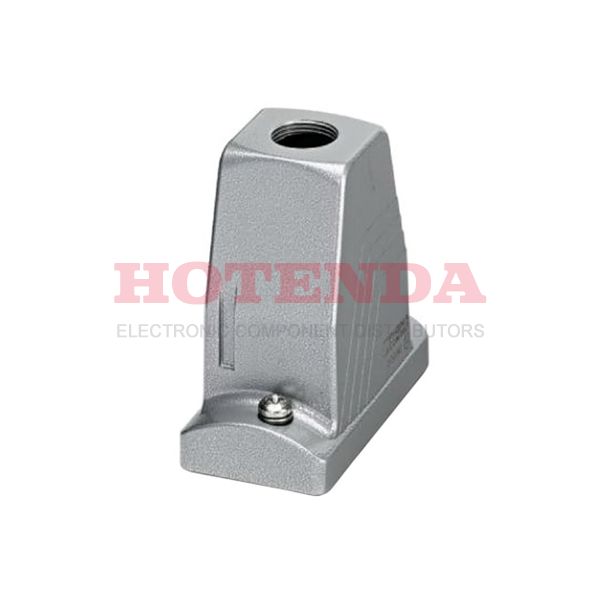

Name: 1690040
Brand: Phoenix Contact
SKU: 1690040
Availability: InStock

new-10%

1690040

Manufacturer part number:1690040

Manufacturer:Phoenix Contact

Description:1690040 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1690040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Screw
Package / Case	100
Housing Material	Aluminum, Die Cast
Operating Temperature	-40°C~125°C
Packaging	Bulk
Published	2010
Series	HEAVYCON-ADVANCE®
Size / Dimension	4.134Lx2.244W x 3.937 H 105.00mmx57.00mmx100.00mm
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Hood
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Color	Grey
Ingress Protection	IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Style	Top Entry
Housing Color	Gray
Size	B10
Thread Size	M25
Lock Location	Screw Locks on Hood
Housing Finish	Powder Coated
Height	99.9998mm
Length	105.0036mm
Width	56.9976mm
RoHS Status	RoHS Compliant
Ratings	Dust Tight, IP66, Water Resistant, Waterproof

1690040 Product Details

1690040 Overview

A Hood package is included with it.A Bulk case is used to package the product.The product is part of the HEAVYCON-ADVANCE? Series.Using it at a temperature below 125°C is ideal.A minimum temperature of -40°C is required for the operation of this device.Located in the packaging with the 100 is a device.Screw mounts the part.-40°C~125°C Operating Temperature is the default.
