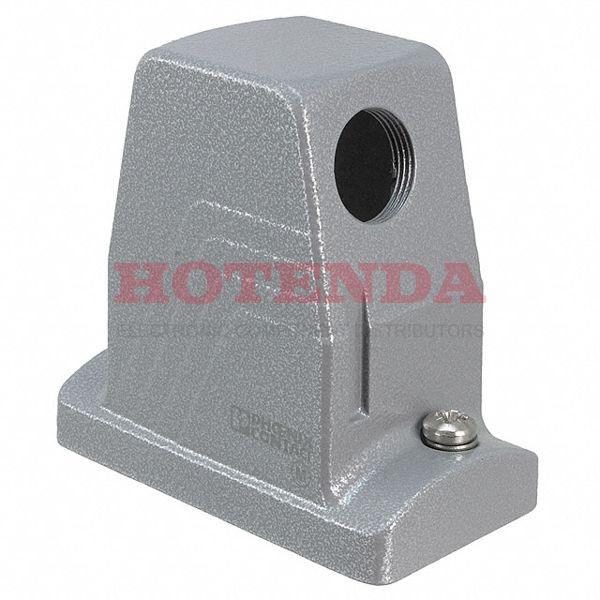

Name: 1690082
Brand: Phoenix Contact
SKU: 1690082
Availability: InStock

new-10%

1690082

Manufacturer part number:1690082

Manufacturer:Phoenix Contact

Description:1690082 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1690082 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Panel
Package / Case	100
Housing Material	Aluminum, Die Cast
Operating Temperature	-40°C~125°C
Packaging	Bulk
Published	2010
Series	HEAVYCON-ADVANCE®
Size / Dimension	4.134Lx2.244W x 3.937 H 105.00mmx57.00mmx100.00mm
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Hood
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Orientation	Straight
Ingress Protection	IP66/68/69K - Dust Tight, Water Resistant, Waterproof
Style	Side Entry
Housing Color	Gray
Size	B10
Thread Size	M25
Lock Location	Screw Locks on Hood
Housing Finish	Powder Coated
Height	99.9998mm
Length	105.0036mm
Width	56.9976mm
RoHS Status	RoHS Compliant
Ratings	Dust Tight, IP65, IP66, Water Resistant, Waterproof

1690082 Product Details

1690082 Overview

Packaging is in the form of Hood.Packaged in a Bulk case.Specifically, it is one of the products in the HEAVYCON-ADVANCE? Series.Whenever the temperature is below 125°C, it's best.Minimum temperature is -40°C.Packaging with the 100 contains a device.In this case, Panel mounts the part.In this case, the device operates at -40°C~125°C Operating Temperature.
