1690396

1690396

1690396

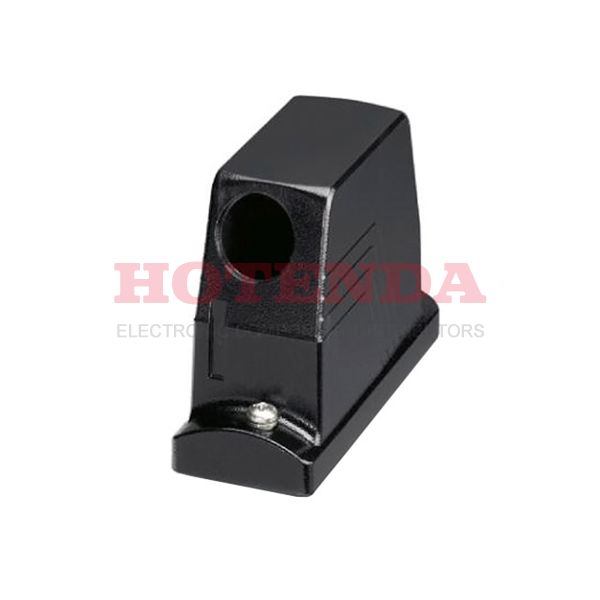

Phoenix Contact

1690396 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from Phoenix Contact stock available on our website

SOT-23

1690396 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Package / Case 100
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Published 2011
Series HEAVYCON-ADVANCE®
Size / Dimension 5.984Lx2.244W x 3.937 H 152.00mmx57.00mmx100.00mm
Feature Salt Water Resistant
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Hood
Max Operating Temperature125°C
Min Operating Temperature -40°C
Ingress ProtectionIP66/68/69K - Dust Tight, Water Resistant, Waterproof
Style Side Entry
Housing Color Black
Size B24
Thread SizeM32
Lock Location Screw Locks on Hood
Housing Finish Powder Coated
Height 99.9998mm
Length 151.9936mm
Width 56.9976mm
RoHS StatusRoHS Compliant
Ratings Dust Tight, IP66, Water Resistant, Waterproof
In-Stock:4836 items

1690396 Product Details

1690396 Overview


The product comes in a package of Hood.To package the product, a Bulk case is used.Product number HEAVYCON-ADVANCE? belongs to the HEAVYCON-ADVANCE? Series.Use it when the temperature is below 125°C.A minimum temperature of -40°C is required for the operation of this device.100 indicates that the package contains an enclosed device.With its Salt Water Resistant feature, it is more powerful in many ways.This device operates at a temperature of -40°C~125°C.

1690396 Features


HEAVYCON-ADVANCE? series

1690396 Applications


There are a lot of Phoenix Contact 1690396 Heavy Duty Connectors applications.

  • Measuring & Control Technology
  • Transportation
  • Telecommunications
  • LED municipal outdoor and street lighting
  • Anywhere power is distributed
  • All Electrical Machinery
  • Medical technology
  • Data Technology
  • Military Technology
  • Automotive Electronics
