Name: 1707247
Brand: Phoenix Contact
SKU: 1707247
Price: 9.58000 USD
Availability: InStock

new

1707247

Manufacturer part number:1707247

Manufacturer:Phoenix Contact

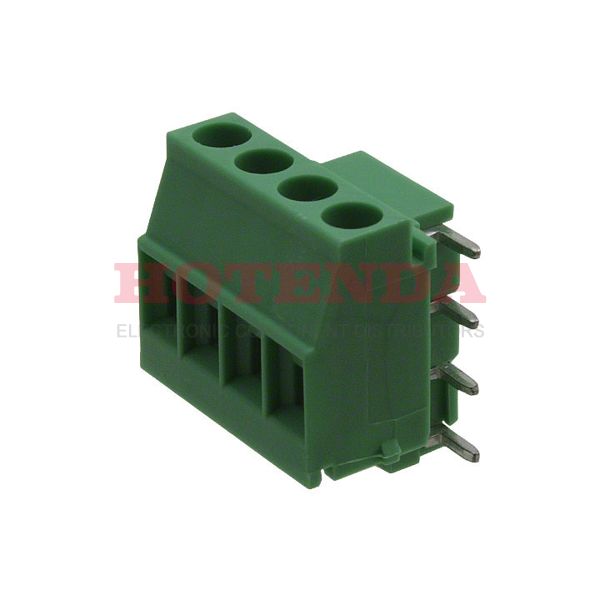

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG COMBICON MKDSO

Case Package:SOT-23

Datasheet:1707247 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	8.275991g
Packaging	Bulk
Series	COMBICON MKDSO
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Current Rating	10A
Wire Gauge	12-30 AWG
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	4
RoHS Status	RoHS Compliant

1707247 Product Details

1707247 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MKDSO Series of products.The part is mounted by Through Hole.
