1709455

1709455

1709455

Phoenix Contact

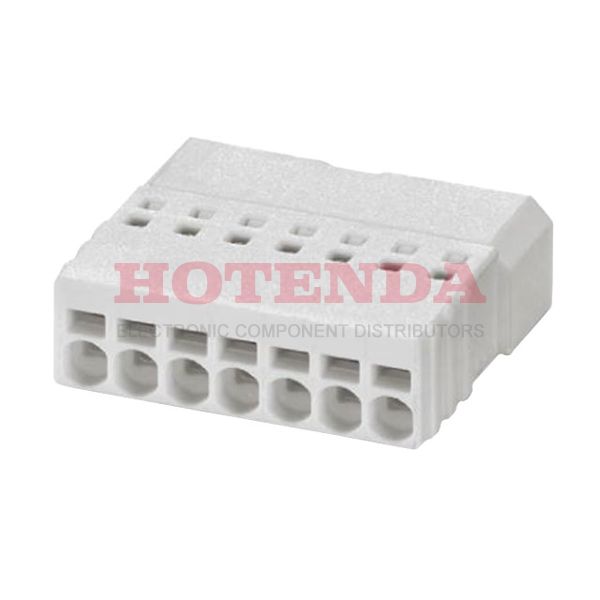

1709455 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1709455 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Plastic
PackagingBulk
Published 2016
Series COMBICON PTSM
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screwless
ECCN Code EAR99
Type Plug, Male Pins
Number of Positions 7
Color White
HTS Code8536.69.40.40
Pitch 0.098 2.50mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 20 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 20-26 AWG
Voltage - IEC 160V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-0.5mm2
Current - IEC 6A
RoHS StatusRoHS Compliant
In-Stock:2857 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.46000$2.46
10$2.35600$23.56
50$2.29200$114.6
100$2.14200$214.2
250$1.97064$492.66
500$1.82076$910.38

1709455 Product Details

1709455 Overview


This device has a mounting type of Free Hanging (In-Line).The product is packaged in a Bulk case.This product is part of the COMBICON PTSM Series.Free Hanging represents the mounting point for the part.There are a number of benefits that this part has in common with other Plug, Male Pins products.

1709455 Features


COMBICON PTSM series

1709455 Applications


There are a lot of Phoenix Contact 1709455 Terminal Blocks applications.

  • Measuring & Control Technology
  • Communication
  • Control panels
  • All Electrical Machinery
  • Blowers
  • Transportation
  • Electrical substations
  • Data Technology
  • Industrial Automation
  • Military Technology
