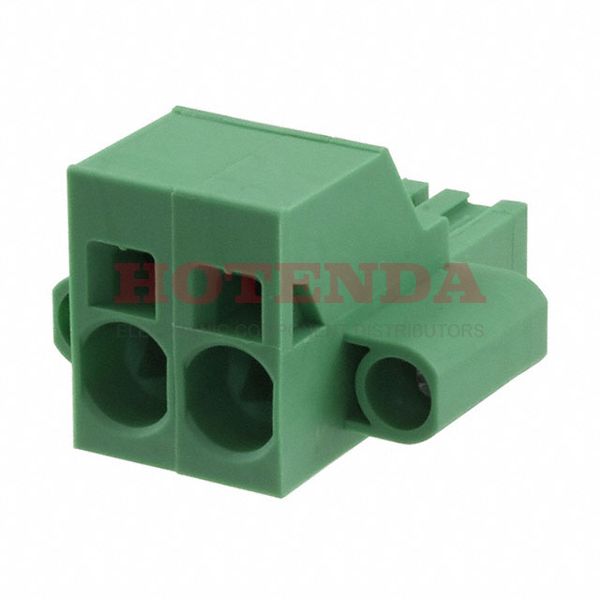

1711378

1711378

1711378

Phoenix Contact

1711378 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1711378 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingSilver
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 600.102706g
PackagingBulk
Published 2011
Series COMBICON SPC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Number of Positions 2
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.400 10.16mm
Orientation Straight
Insulation Height 0.988 25.10mm
Reach Compliance Code unknown
Current Rating76A
Termination Style Screwless - Spring Cage, Tension Clamp
Number of Contacts 2
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 66A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 4 AWG
Number of Decks 1
Wire Gauge or Range - AWG 4-20 AWG
Voltage - IEC 1kV
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 18mm
Fastening Method SPRING LOADED
Height 38.08mm
Length 25.1mm
Width 44.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:713 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$12.484266$12.484266
10$11.777609$117.77609
100$11.110953$1111.0953
500$10.482031$5241.0155
1000$9.888707$9888.707

1711378 Product Details

1711378 Overview


The product comes in a package of Socket.Mounting type Free Hanging (In-Line) is assigned to the device.Packaged in a Bulk case.COMBICON SPC Series product.Furthermore, there are other features such as PA, UL 94V-0, to name a few.Several benefits come from the Mating Flange feature.Part Free Hanging, Panel is mounted to the part.Other Plug, Female Sockets products share lots of benefits with this part.

1711378 Features


COMBICON SPC series

1711378 Applications


There are a lot of Phoenix Contact 1711378 Terminal Blocks applications.

  • Blowers
  • Transportation
  • Energy efficient lighting (LED)
  • Industrial Automation
  • Medical technology
  • Military Technology
  • Telecommunications
  • Datacom
  • Control panels
  • Data Technology
