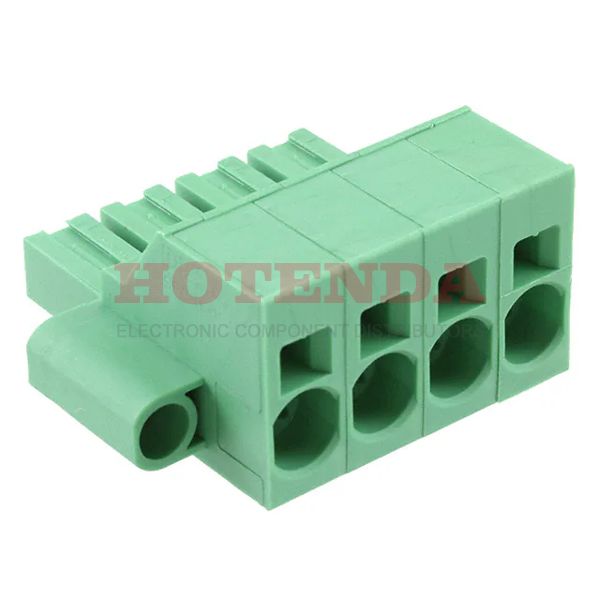

Name: 1711394
Brand: Phoenix Contact
SKU: 1711394
Price: 20.28000 USD
Availability: InStock

new

1711394

Manufacturer part number:1711394

Manufacturer:Phoenix Contact

Description:1711394 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1711394 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	499.858792g
Packaging	Bulk
Published	2011
Series	COMBICON SPC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	4
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Insulation Height	0.988 25.10mm
Current Rating	76A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	600V
Number of Levels	1
Current	66A
Wire Gauge (Max)	4 AWG
Wire Gauge (Min)	18 AWG
Number of Decks	1
Wire Gauge or Range - AWG	4-20 AWG
Voltage - IEC	1kV
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	18mm
Current - IEC	76A
Fastening Method	SPRING LOADED
Height	44.5mm
Length	25.1mm
Width	58.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1711394 Product Details

1711394 Overview

A Socket package is included with it.This device has a Free Hanging (In-Line) mounting type.We package the product with a Bulk case.It's from the COMBICON SPC Series.In many ways, Mating Flange makes it more powerful.This part is mounted by Free Hanging. There are many benefits that this part shares with other Plug, Female Sockets products as well.
