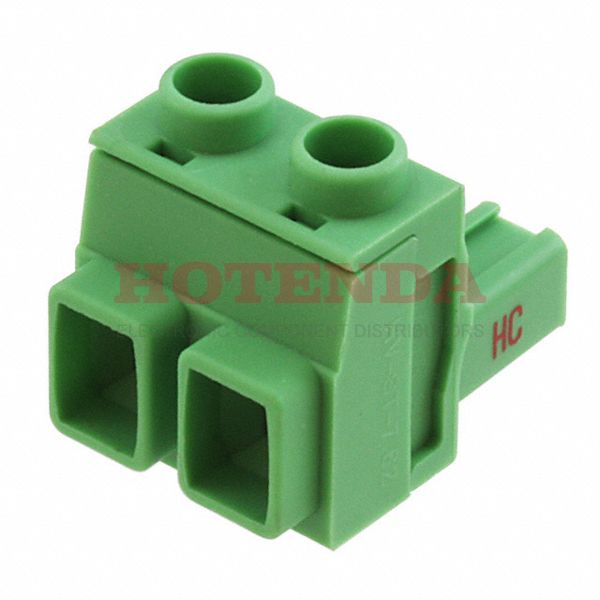

Name: 1714278
Brand: Phoenix Contact
SKU: 1714278
Price: 4.63000 USD
Availability: InStock

new-10%

1714278

Manufacturer part number:1714278

Manufacturer:Phoenix Contact

Description:1714278 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1714278 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	35.000009g
Packaging	Bulk
Published	2010
Series	COMBICON GMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	0.689 17.50mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	18.5A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	8mm
Current - IEC	16A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1714278 Product Details

1714278 Overview

You'll get Screw packages.This device has a mounting type of Free Hanging (In-Line).It is necessary to use a Bulk case for packaging the product.It belongs to the COMBICON GMSTB Series of products.Also, there's PA, UL 94V-0, to name a few.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Free Hanging is the mounting point for the part.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
