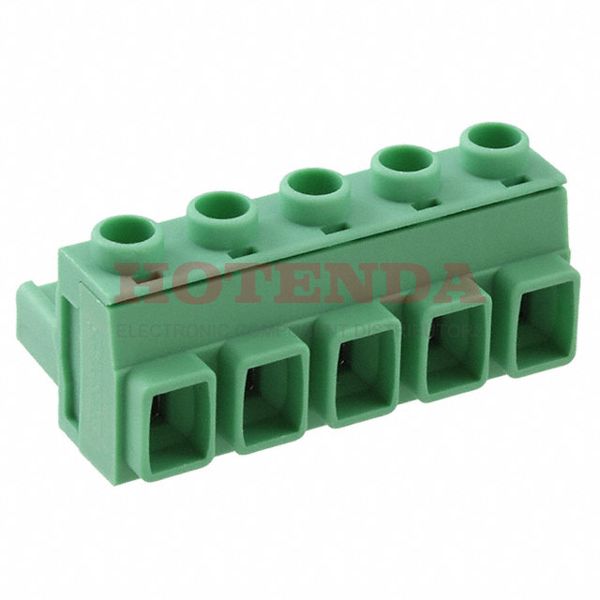

Name: 1714304
Brand: Phoenix Contact
SKU: 1714304
Price: 11.62000 USD
Availability: InStock

new

1714304

Manufacturer part number:1714304

Manufacturer:Phoenix Contact

Description:1714304 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1714304 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	35.000009g
Packaging	Bulk
Published	2010
Series	COMBICON GMSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.300 7.62mm
Insulation Height	0.689 17.50mm
Reach Compliance Code	not_compliant
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	18.5A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	8mm
Current - IEC	16A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1714304 Product Details

1714304 Overview

The product comes in a package of Screw.This device is mounted in the Free Hanging (In-Line) position.We pack the product in a Bulk case.The product belongs to the COMBICON GMSTB Series.Among other features are PA, UL 94V-0, to name only a few.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.Mounted by Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
