1714346

1714346

1714346

Phoenix Contact

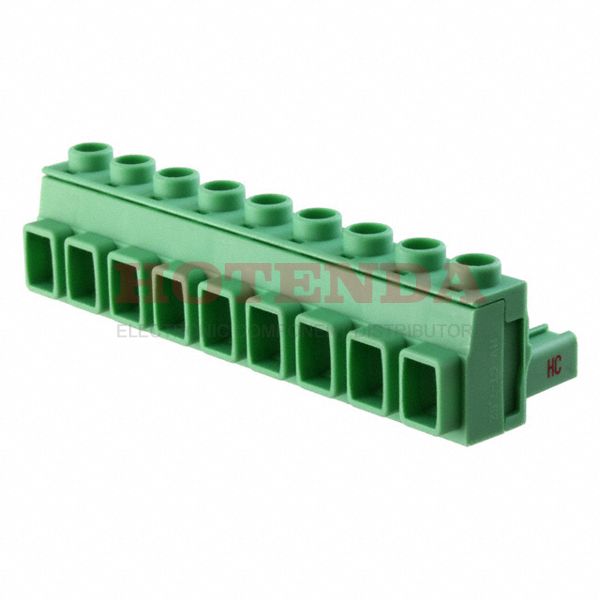

1714346 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1714346 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 35.000009g
PackagingBulk
Published 2011
Series COMBICON GMSTB
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 9
Color Green
Number of Rows 1
Voltage - Rated 1kV
Pitch 0.300 7.62mm
Insulation Height 0.689 17.50mm
Reach Compliance Code unknown
Current Rating16A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 18.5A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 9
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 8mm
Current - IEC 16A
Screw Size M3
Wire Cross Section 2.5 mm2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:369 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$17.537000$17.537
10$16.544340$165.4434
100$15.607868$1560.7868
500$14.724403$7362.2015
1000$13.890947$13890.947

1714346 Product Details

1714346 Overview


You'll get Screw packages.There is a Free Hanging (In-Line) mounting type for the device.Packaging the product involves using a Bulk case.A product of the COMBICON GMSTB Series, it belongs to the range of products of that series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.There's a Free Hanging mount on the part.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1714346 Features


COMBICON GMSTB series

1714346 Applications


There are a lot of Phoenix Contact 1714346 Terminal Blocks applications.

  • Datacom
  • Anywhere power is distributed
  • Measuring & Control Technology
  • Automotive Electronics
  • Telecommunications
  • Military Technology
  • Industrial Automation
  • Variable speed/frequency drivers
  • Energy efficient lighting (LED)
  • Communication
