Name: 1714984
Brand: Phoenix Contact
SKU: 1714984
Price: 2.76000 USD
Availability: InStock

new-10%

1714984

Manufacturer part number:1714984

Manufacturer:Phoenix Contact

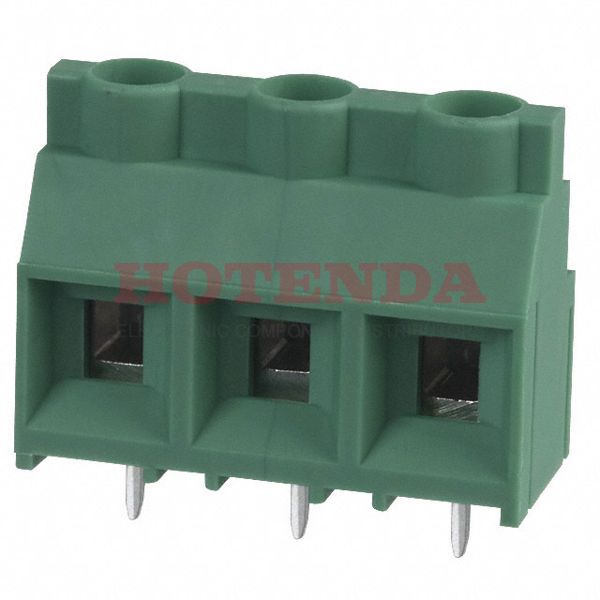

Description:0.375 9.53mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 10-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1714984 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	3
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	9.530004g
Packaging	Bulk
Series	COMBICON MKDS
Published	2001
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	PCB, Terminal Block
Number of Positions	3
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	690V
Pitch	0.375 9.53mm
Orientation	Straight
Depth	12.5mm
Current Rating	32A
Voltage - Rated AC	500V
Approval Agency	CSA, UL, cULus
Lead Pitch	9.5mm
Number of Contacts	3
Housing Color	Green
Wire Gauge	10-30 AWG
Voltage	600V
Number of Circuits	3
Max Supply Voltage	690V
Max Current Rating	32A
Number of Levels	1
Current	30A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	24 AWG
Wire/Cable Gauge	10 AWG
Number of Poles	3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level	3
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	3
Stripping Length	8mm
Height	21.7mm
Length	28.52mm
Width	12.5mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1714984 Product Details

1714984 Overview

Currently, it is packaged in PCB, Terminal Block.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MKDS Series, it belongs to the range of products of that series.3 pins are on the device.A number of features make the Interlocking (Side) feature more powerful.Through Hole represents the mounting point for the part.Contains 3 circuits.This chip should not be supplied with voltages greater than zero.
