1715129

1715129

1715129

Phoenix Contact

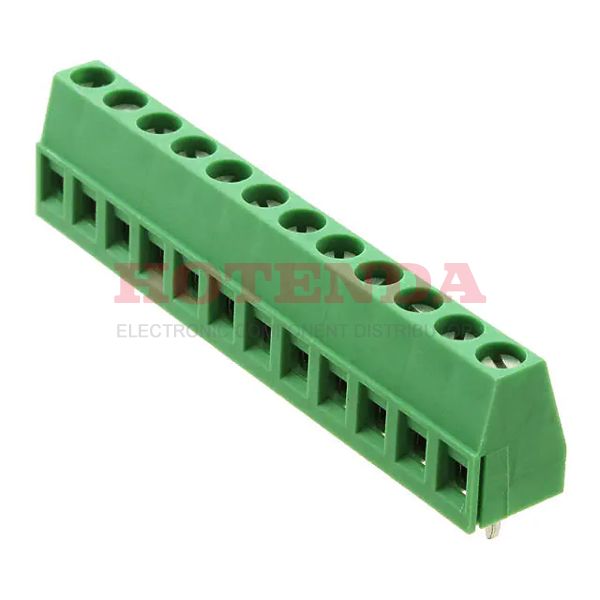

0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDS

SOT-23

1715129 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Through Hole
Mounting Type Through Hole
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 1.549925kg
PackagingBulk
Series COMBICON MKDS
Published 2005
Feature Interlocking (Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Color Green
Number of Rows 1
Gender Male
Voltage - Rated 400V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.197 5.00mm
Orientation Straight
Reach Compliance Code unknown
Current Rating17.5A
Approval Agency CSA, UL, cULus
Number of Contacts 12
Wire Gauge14-30 AWG
Voltage 300V
Max Current Rating 22A
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 12
Safety Approval UL
Mating Orientation Horizontal with Board
Wire TerminationScrew - Rising Cage Clamp
Screw Thread M3
Stripping Length 7mm
Length 9.8mm
Width 55mm
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:889 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.23000$7.23
10$7.03300$70.33
50$6.57300$328.65
100$6.04720$604.72
250$5.58704$1396.76
500$5.32416$2662.08

1715129 Product Details

1715129 Overview


This product is packaged in a Screw cartonThis device's mounting type is Through Hole.It's packaged in a Bulk case.COMBICON MKDS Series product.There are also features like PA, 94V-0, just to name a few.Its Interlocking (Side) feature makes it more powerful in a number of ways.Through Hole is mounting the part.

1715129 Features


COMBICON MKDS series


1715129 Applications


There are a lot of Phoenix Contact
1715129 Terminal Blocks applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
